Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/recycling/charging station.
3. When the engine is cool, drain the engine coolant from the radiator.

   (Refer to Engine Mechanical System - "COOLANT ")

4. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

5. Disconnect the expansion valve from the evaporator core.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

6. Disconnect the inlet and outlet heater hoses from the heater unit.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

7. Remove both sides of front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

8. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

9. Disconnect the steering column connectors.

   (Refer to Steering System - "MDPS ASSEMBLY ")

10. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

    (Refer to Steering System - "MDPS ASSEMBLY ")

11. Remove the shift lever assembly.

    (Refer to Automatic Transaxle System - "SHIFT LEVER ")

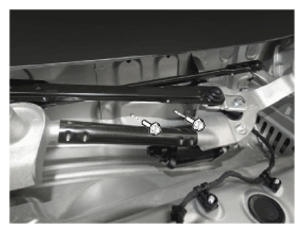

12. Loosen the engine room cowl cross bar assembly mounting bolts.

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

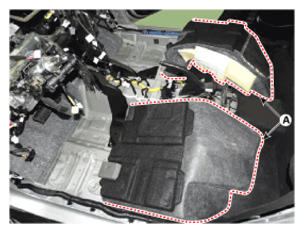

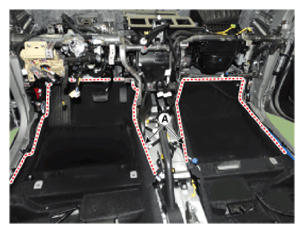

13. Separate the floor carpet (A) to obtain space for removing the rear heating duct.

    Courtesy of HYUNDAI MOTOR AMERICA

    Courtesy of HYUNDAI MOTOR AMERICA

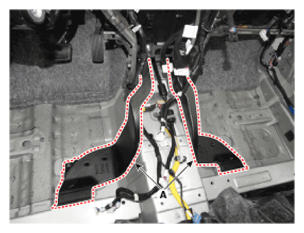

14. Loosen the nut and then separate the rear air duct (A).

    Courtesy of HYUNDAI MOTOR AMERICA

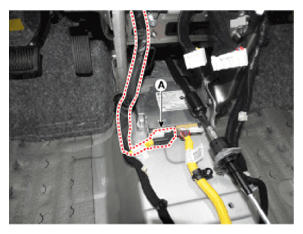

15. Disconnect the airbag control module (SRSCM) connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

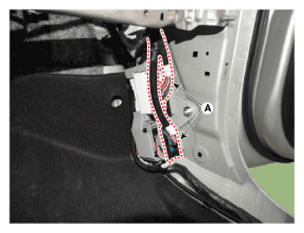

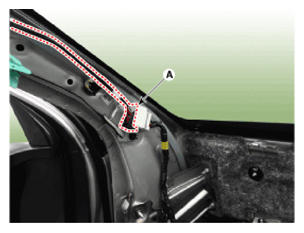

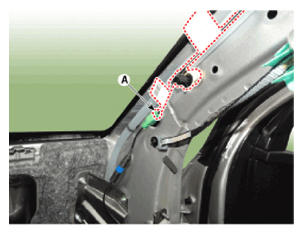

16. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [Driver"s]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger"s]

    Courtesy of HYUNDAI MOTOR AMERICA

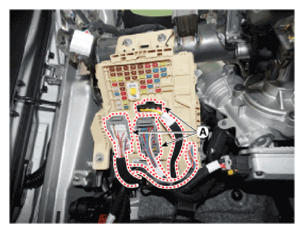

17. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of HYUNDAI MOTOR AMERICA

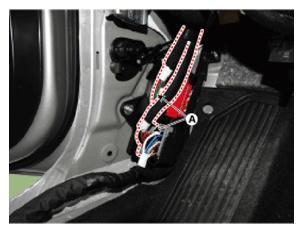

18. Disconnect the multi box connectors (A).

    [Driver"s]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger"s]

    Courtesy of HYUNDAI MOTOR AMERICA

19. Disconnect the heater and blower unit connector.

    [Driver"s]

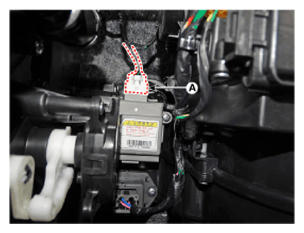

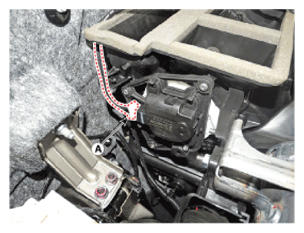

    1. Disconnect the mode actuator connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger"s]

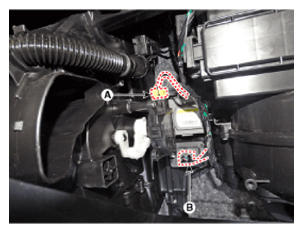

    1. Disconnect the temperature actuator connector (A) and power misfit connector (B).

       Courtesy of HYUNDAI MOTOR AMERICA

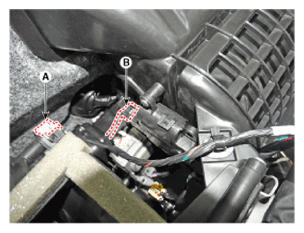

    2. Disconnect the auto defogging actuator connector (A) and intake actuator connector (B).

       Courtesy of HYUNDAI MOTOR AMERICA

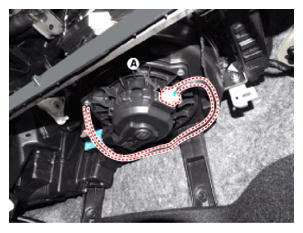

    3. Disconnect the blower motor connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

    4. Disconnect the cluster ionizer connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

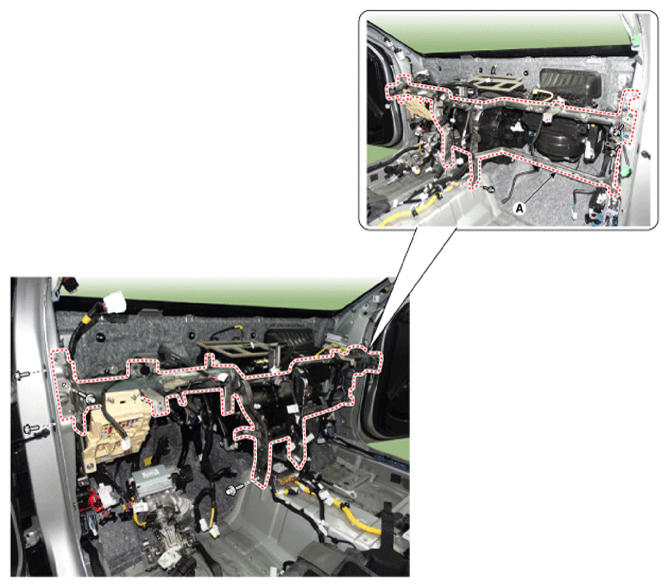

20. After loosening the bolts and nuts, then remove the cowl cross bar assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

21. To install, reverse removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti- theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
