Air Bleeding Tool Removal Procedure

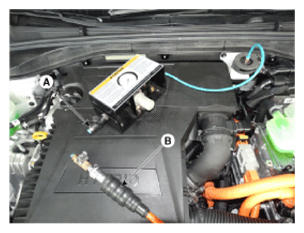

  1. To remove the SST (09580-3D100) from the vehicle, close the air shut-off valve (A) first.
    G12729469Courtesy of HYUNDAI MOTOR AMERICA

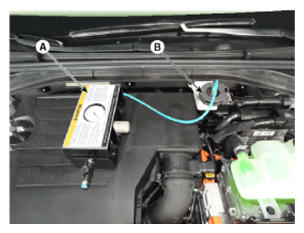

  2. Remove SST (09580-3D100) and the cap of SST (0K585-E8100) on the reservoir tank.
    G12729470Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • To prevent backflow of brake fluid, be sure to open the air shut-off valve slowly then bleed air in the reservoir tank.
  3. Install the brake reservoir tank cap.
