Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the wiring bracket.
- Remove the brake fluid from the reservoir with a syringe.NOTE:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
- To prevent any dust entering in the reservoir, the reservoir cap should be closed again after removing brake fluid.

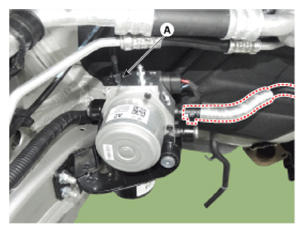

- Loosening the flare nut (A) and then disconnect the brake tube.
Tightening torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
CAUTION:- Before removing the brake tube, high pressure in an accumulator of PSU should be reduced for safety by conducting "High pressure release mode" of GDS connected to LF HEV.
- Disconnect the PSU connector.
- Remove the front sub frame.
(Refer to "SUB FRAME ")

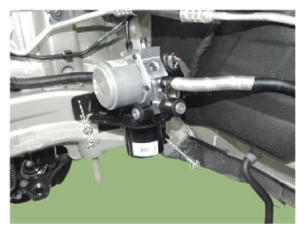

- Loosen the mounting bolt and nut then remove the PSU.
Tighten torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
