Components And Components Location: Components

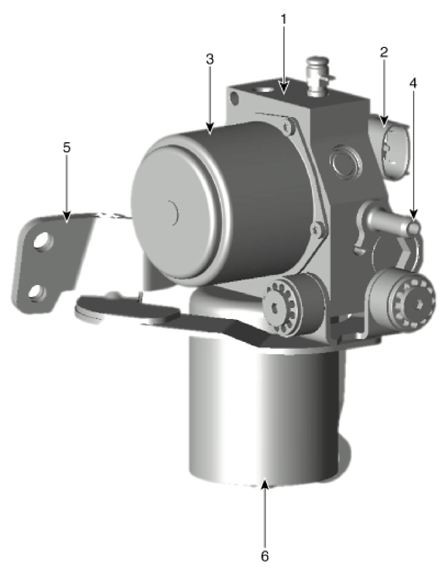

G12729489Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • PSU (Presser Source Unit) must not be disassembled.
  1. Pressure Source Unit (PSU)
  2. Pressure Source Unit (PSU) connector
  3. Motor
  4. Filler adapter
  5. Bracket
  6. Accumulator
