Brake Malfunction

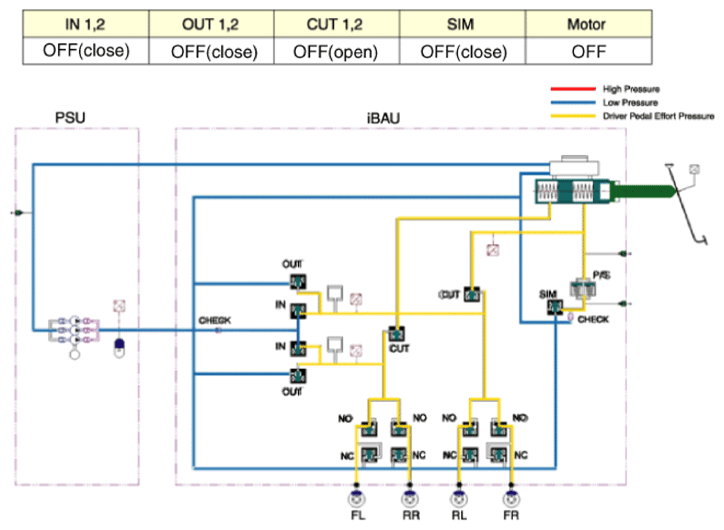

G12729462Courtesy of HYUNDAI MOTOR AMERICA

If the PSU or the IBAU is broken, IN valve and OUT valve are closed, and CUT valve is off. Therefore, the brake force is generated by only pressing a brake pedal manually by a driver.
