Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

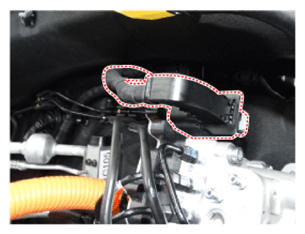

- Disconnector TCM connector (A).
- Disconnector TCM connector (B).

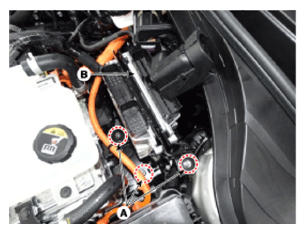

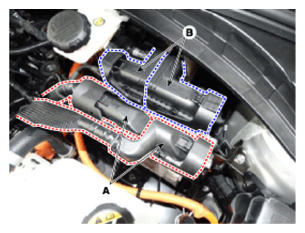

- Loosen the bolt & nut (A) then remove the ECM, TCM with bracket (B).
- Remove the air cleaner.
(Refer to "AIR CLEANER ")
- Remove the brake fluid from the reservoir with a syringe.NOTE:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
- To prevent any dust entering in the reservoir, the reservoir cap should be closed again after removing brake fluid.

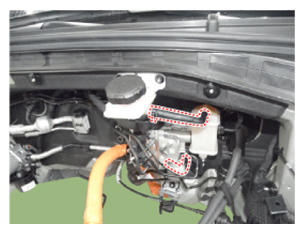

- Disconnect the brake hose from the reservoir.

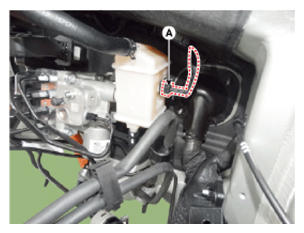

- Disconnect the brake fluid level switch connector (A).
- Disconnect IBAU connector.

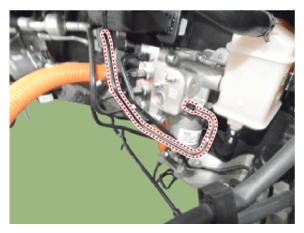

- Disconnect the brake tube from the IBAU (Intergrated Brake Actuation Unit) by loosening the tube flare nut.
Tighten torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
CAUTION:- Before removing the brake tube, high pressure in an accumulator of PSU should be reduced for safety by conducting "High pressure release mode" of GDS connected.
- Disconnect the brake tube from the IBAU (Intergrated Brake Actuation Unit) by loosening the tube flare nut.
Tighten torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)

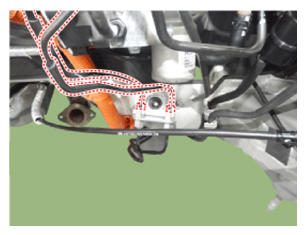

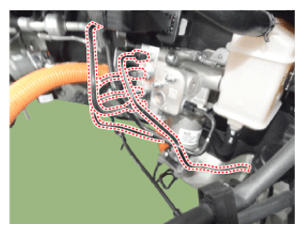

- Remove the rear brake tube.

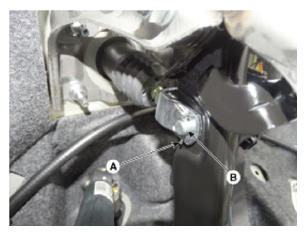

- Remove the snap pin (A) and clevis pin (B).

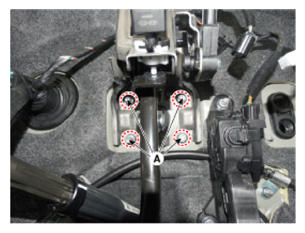

- Remove the mounting nuts (A) and then remove the brake pedal.
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)
