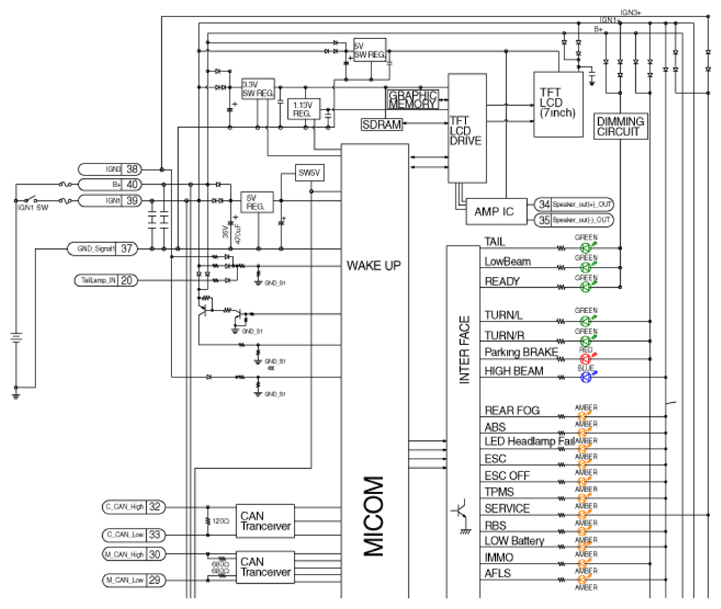

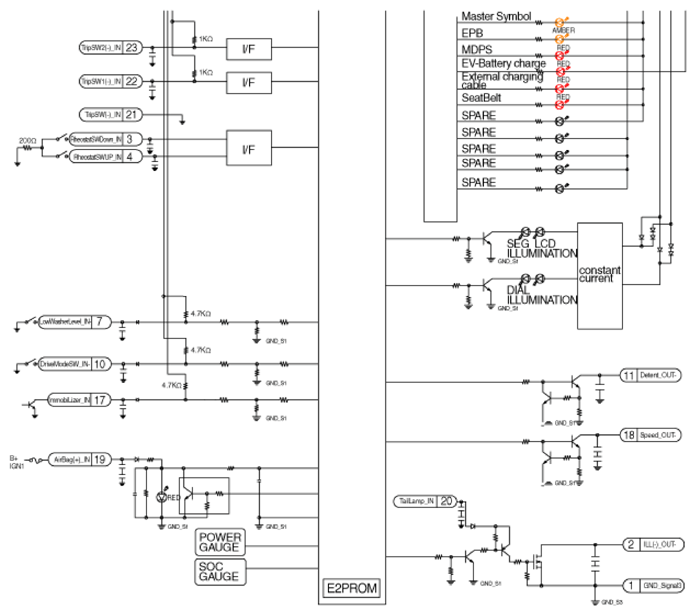

Home >> Hyundai >> 2018 >> Ioniq Plug-In Hybrid >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators And Gauges (PHEV) >> Instrument Cluster >> Schematic Diagrams >> Circuit Diagram
