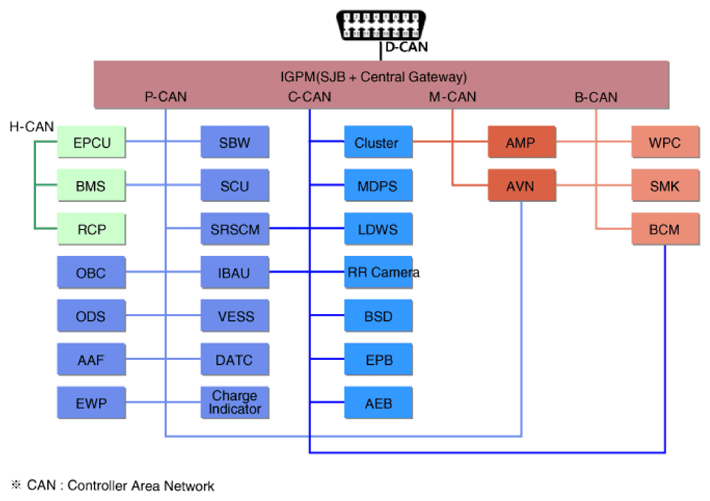

Communication Network Diagram

G12730326Courtesy of HYUNDAI MOTOR AMERICA
Abbreviation Explanation
AAF Active Air Flap
OBC On-Board Battery Chargers
VESS Virtual Engine Sound System
DATC Dual Automatic Temp Control
RCP Rapid Charge Port
B_CAN Body Controller Area Network
C_CAN Chassis Controller Area Network
BCM Body Control Module
Cluster Cluster Module
RR Camera Rear View Camera
LDWS Lane Departure Warning System
MDPS Motor Driven Power Steering
BSD Blind Spot Detection
EPB Electronic Parking Brake
AEB Autonomous Emergency Braking
AMP Amplifier
AVN Head Unit (Audio/AVN)
SJB Smart Junction Block
SMK Smart Key Unit
M_CAN Multi media Controller Area Network
P_CAN Powertrain Controller Area Network
IGPM Integrated Gateway & Power Control Module
BMS Battery Management System
ODS Occupant Detection System
EWP Electric Water Pump
WPC Wireless Power Charger
SBW Shift By Wire
SRSCM Supplemental Restraint System Control Module
EPCU Electric Power Control Unit
IBAU Integrated Brake Actuation Unit
