Removal And Installation

Disconnect the battery negative terminal.
Disconnect the rear oxygen sensor connector (A).

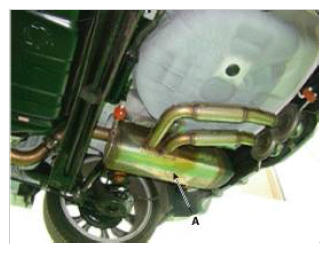

Fig 1: Locating Rear Oxygen Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear oxygen sensor.
(Refer to HEATED OXYGEN SENSOR (HO2S) )
Remove the front muffler (A).
Tightening torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

Fig 2: Locating Front Muffler
Courtesy of HYUNDAI MOTOR AMERICA
Remove the center muffler (A).
Tightening torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

Fig 3: Locating Center Muffler
Courtesy of HYUNDAI MOTOR AMERICA
Remove the main muffler (A).
Tightening torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

Fig 4: Locating Main Muffler
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE: When installing, replace with new gaskets.
