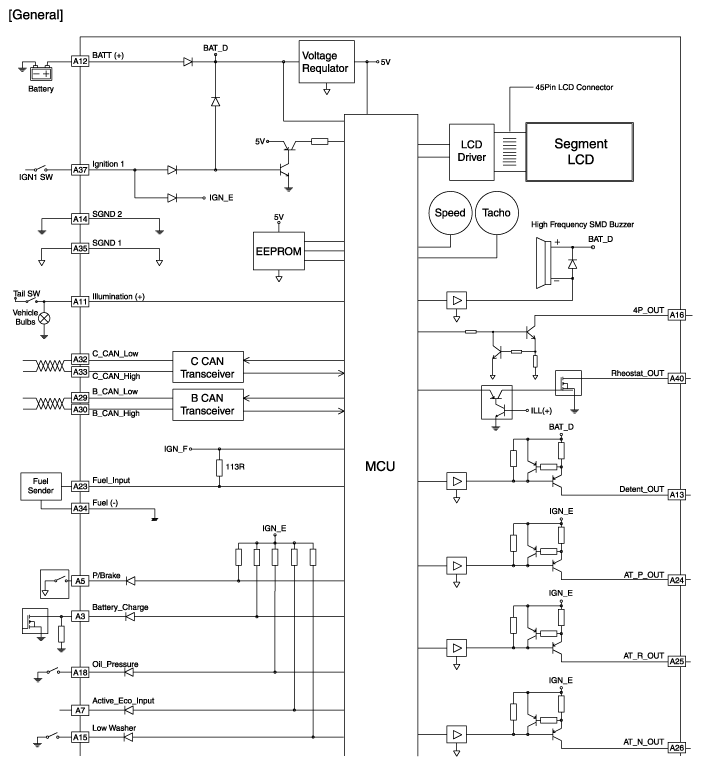

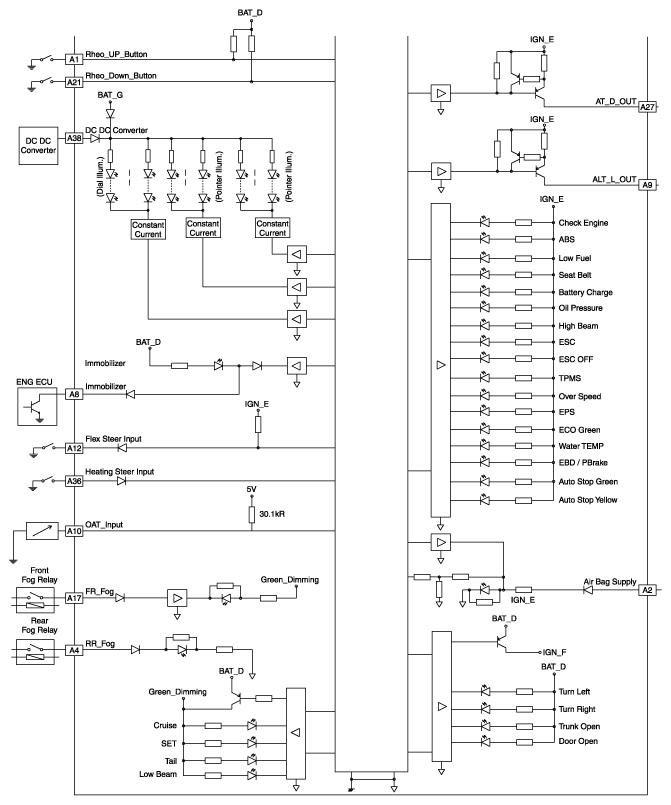

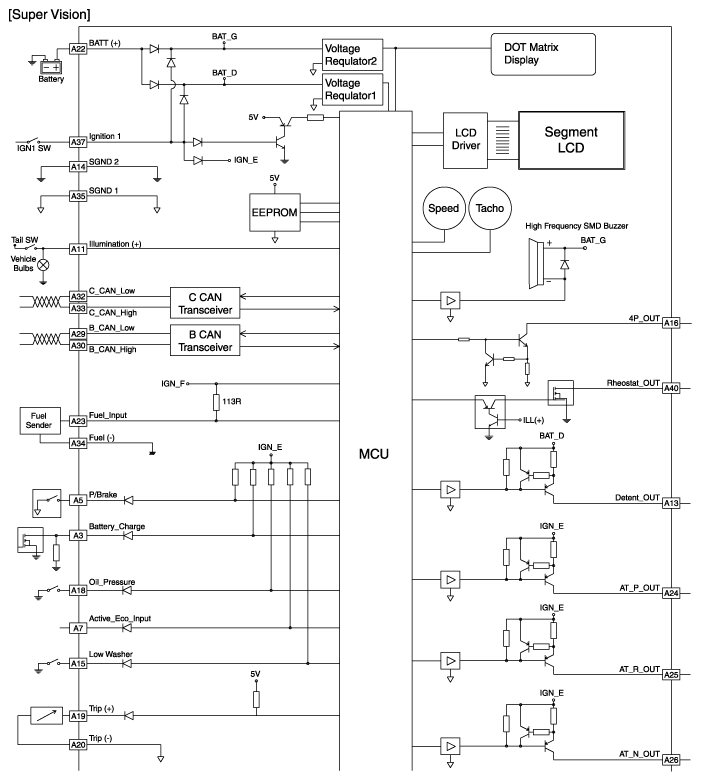

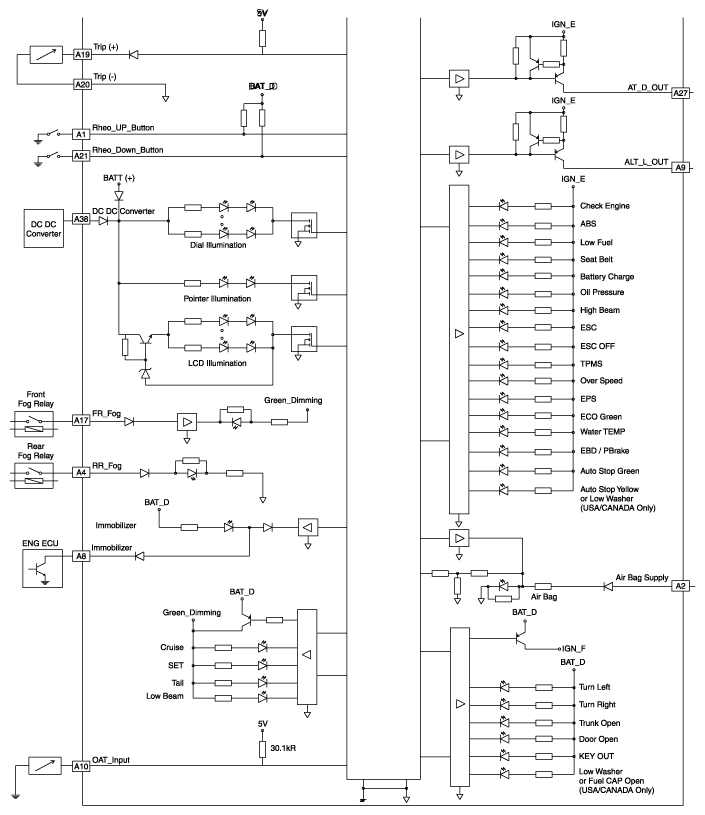

Home >> Hyundai >> 2017 >> Veloster Base, Automatic DCT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators And Gauges >> Instrument Cluster >> Schematic Diagrams >> Circuit Diagram
