Monitor DTC Status

WARNING: This page is about a different car, the 2016 Hyundai Sonata and 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Vehicle Parked & Ignition ON.
  2. Connect GDS and select "DTC Analysis" mode.
  3. Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC's information.
  4. If DTC Status is present fault, then go to the next procedure and if it is History fault, then clear DTC and check the same DTC reoccurs.

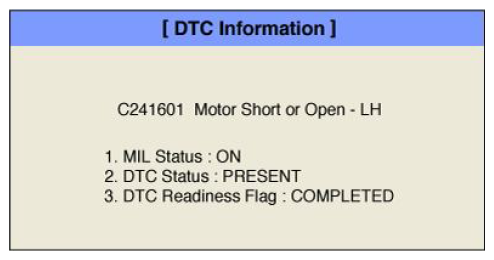

    Fig 1: Screen Display - DTC Information
    G10569021Courtesy of HYUNDAI MOTOR AMERICA
  5. Is parameter displayed "Present fault"?

    YES

    • If there is any DTC besides C241601, firstly check the DTC and repair parts and then confirm the recurrence of C241601 DTC.
    • DTC may occur when battery performance is abnormal so that battery performance needs to be checked with battery tester. And also, DTC may occurs when EPB motor is severely operated under Engine OFF & IG Key ON condition.
    • Go to next procedure.

    NO

    • If DTC is historic, perform EPB Apply/Release several times to check same problem happens.
    • Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and Control Module memory is not cleared yet or battery performance status. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
