Monitor DTC Status
WARNING: This page is about a different car, the 2016 Hyundai Sonata and 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Parked & Ignition ON.
- Connect GDS and select "DTC Analysis" mode.

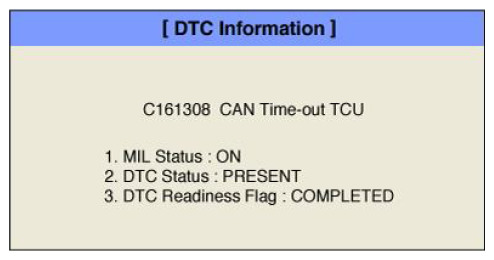

- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC's information.
- If DTC Status is present fault, then go to the next procedure and if it is History fault, then clear DTC and check the same DTC reoccurs.
- Is parameter displayed "Present fault"?
YES
- Select Engine ECM system and Check DTCs related with RPM, brake pedal signal, etc system. If DTC is exist, repair as necessary and then confirm clear.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- This fault was repaired and EPB Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
