Component Location

WARNING: This page is about a different car, the 2016 Hyundai Sonata and 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

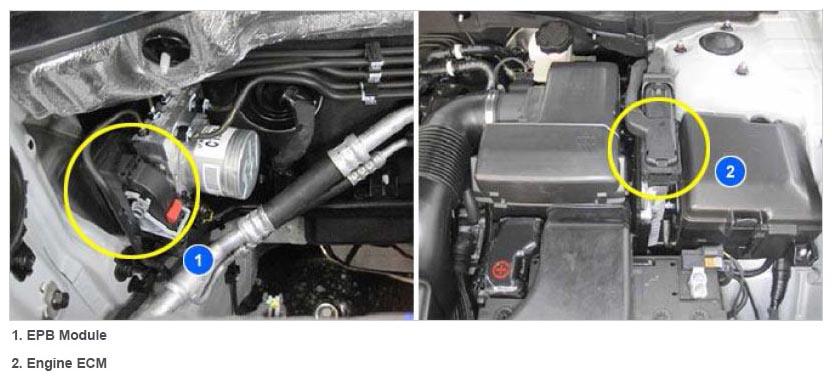

Fig 1: Identifying EPB Module And Engine ECM
G10569002Courtesy of HYUNDAI MOTOR AMERICA
