Monitor DTC Status
WARNING: This page is about a different car, the 2016 Hyundai Sonata and 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Parked & Ignition ON.
- Connect GDS and select "DTC Analysis" mode.

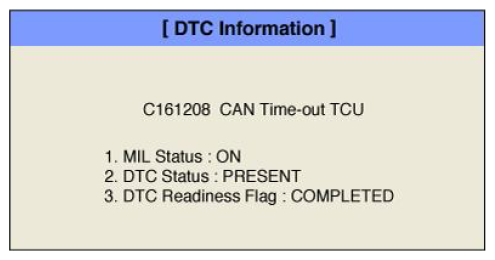

- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC's information.
- If DTC Status is present fault, then go to the next procedure and if it is History fault, then clear DTC and check the same DTC reoccurs.
- Is parameter displayed "Present fault"?
YES
- Select TCM system and Check DTCs related with TCM system or CAN Time-out. If DTC is exist, repair as necessary and then confirm clear.
- Select Gateway (CGW) system and Check DTCs related with Gateway (CGW) system fault. If DTC is exist, repair as necessary and then confirm clear.
- Recheck EPB system, if C1612 is still active DTC, Go to Next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
