Diagnostic Circuit Diagram

WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

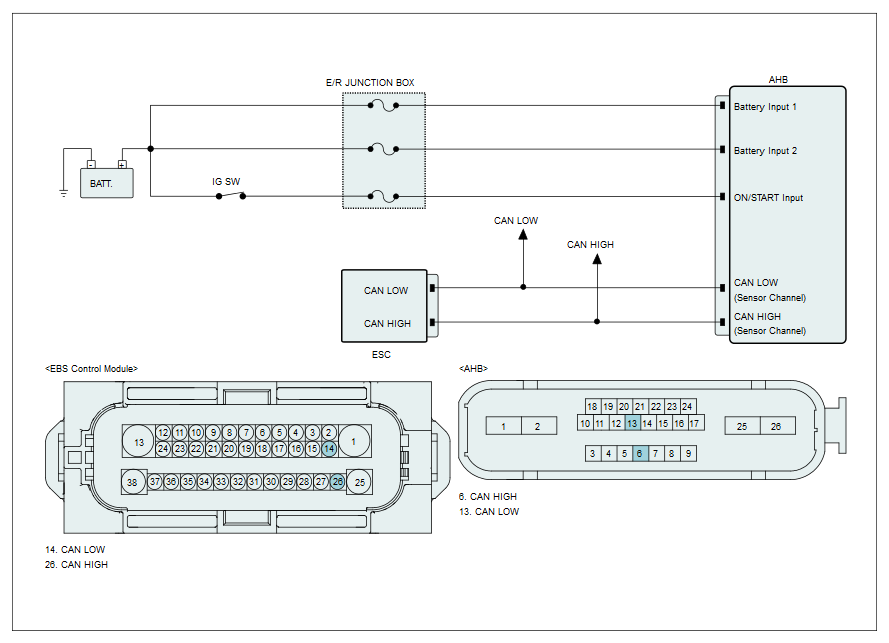

Fig 1: AHB Circuit Diagram
G10602838Courtesy of HYUNDAI MOTOR AMERICA
