Monitor GDS Data

WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

■ Brake Pedal Travel Sensor Calibration

IG "ON", ENG "OFF".
Stand the vehicle on a flat ground without any inclination.
Don't press brake pedal.
Connect GDS to Data Link Connector (DLC).
Perform Brake Pedal Travel Sensor Calibration (Fig 1).

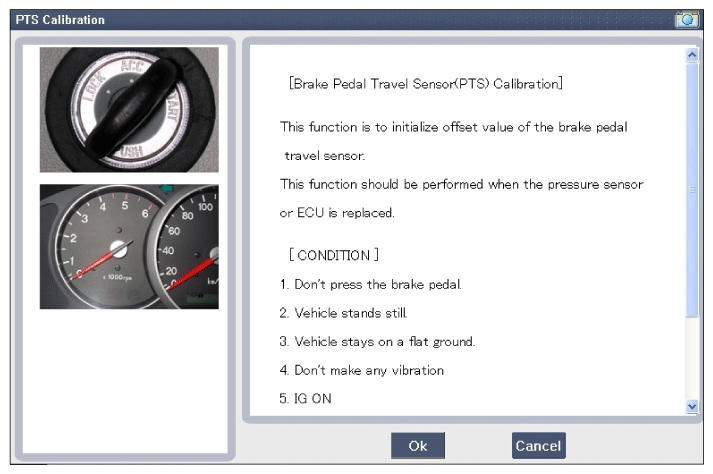

Fig 1: Screen Display - Brake Pedal Travel Sensor Calibration
Courtesy of HYUNDAI MOTOR AMERICA
Is "Brake Pedal Travel Sensor Calibration" completed normally?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- According to negative response from AHB, inspect wiring harness, BLS, etc.
- If above check is OK, substitute with a known-good brake pedal pressure sensor and check for proper operation. If problem is corrected, replace brake pedal pressure sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
