Power Circuit Inspection
WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

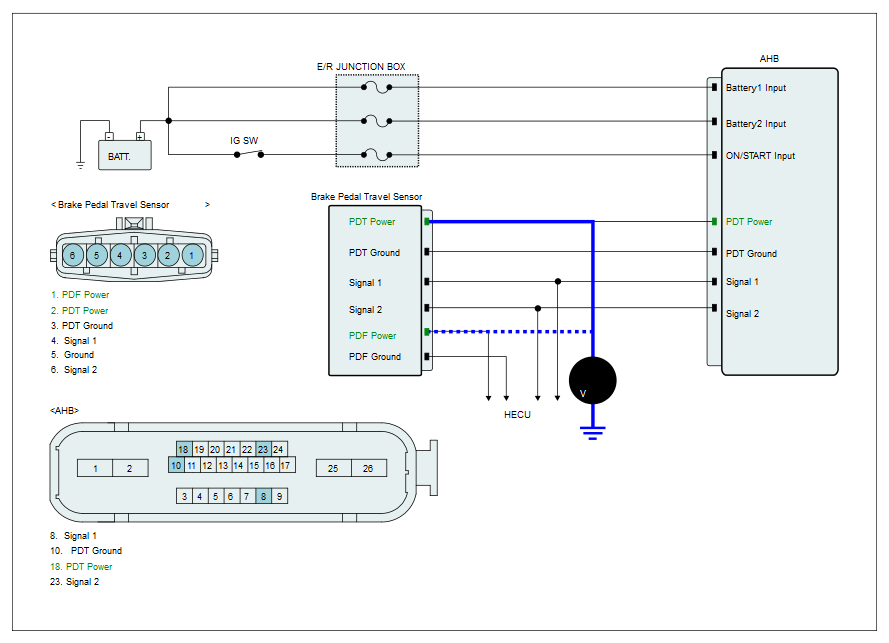

■ Open or Short Check
- IG "ON".
- Measure voltage between power terminal of the Brake Pedal Travel sensor harness connector and chassis ground.
Specification: Approx. 5V
- Is the measured value within specifications?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair open or short in power circuit between the Brake Pedal Travel sensor harness connector and HECU, AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR "
