Ground Circuit Inspection
WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

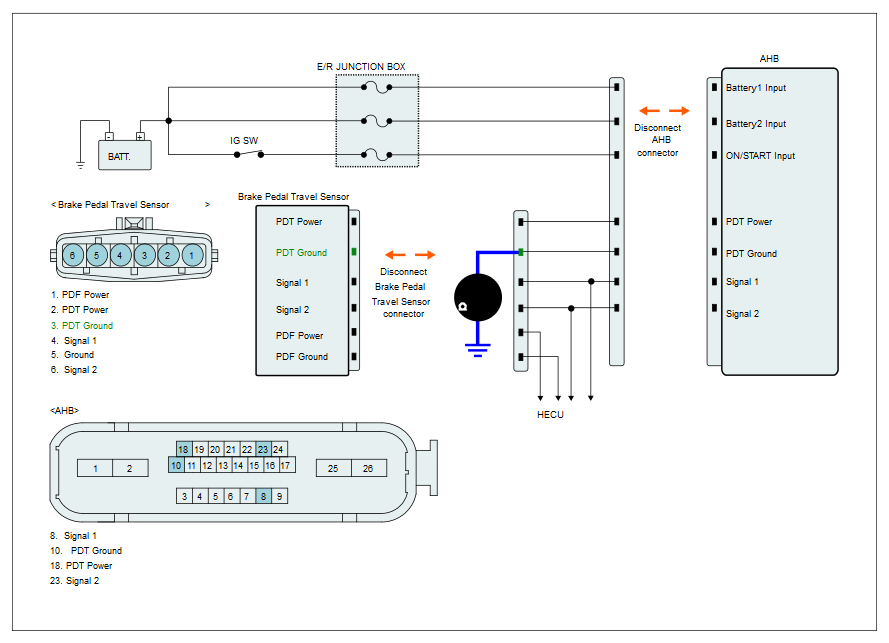

■ Open or Short Check
- IG "OFF".
- Disconnect the Brake Pedal Travel sensor, AHB connectors.
- Measure resistance between PDF ground terminal of the Brake Pedal Travel sensor harness connector and chassis ground.
Specification: Approx. below 1Ω
- Is the measured value within specifications?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair open or short in ground circuit between the Brake Pedal Travel sensor harness connector and AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR "
