Active Hydraulic Boost Circuit Diagram (1)

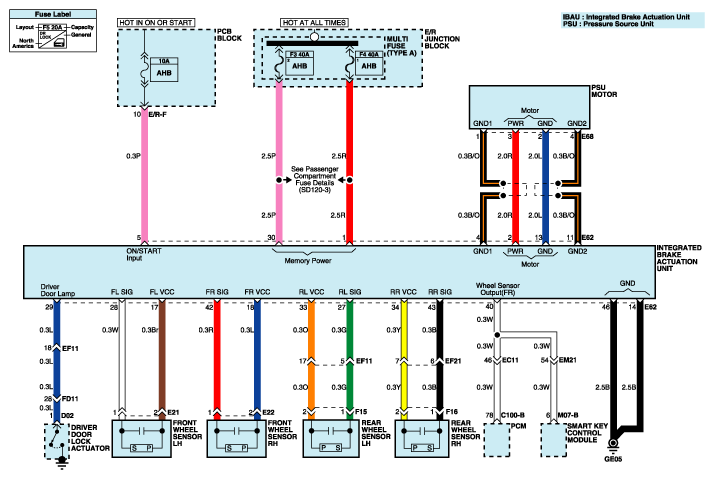

Fig 1: Active Hydraulic Boost Circuit Diagram (1)

G11668916

Courtesy of HYUNDAI MOTOR AMERICA
