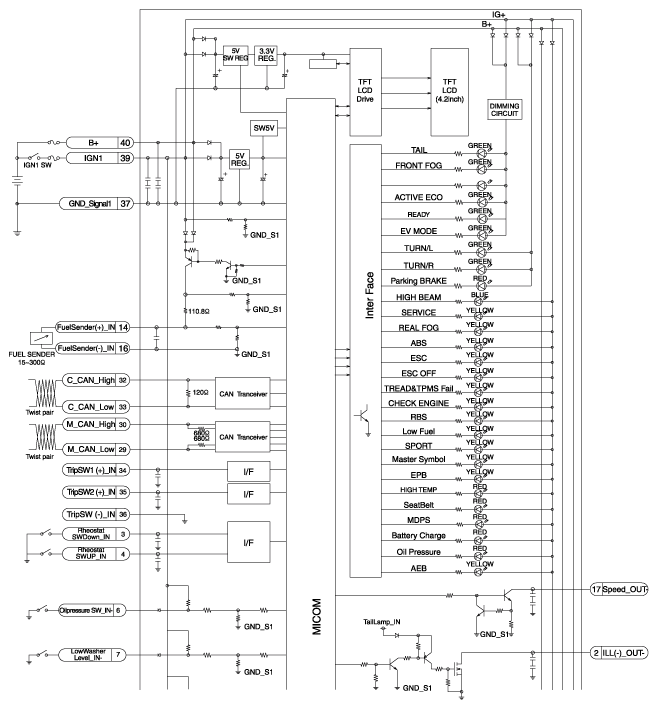

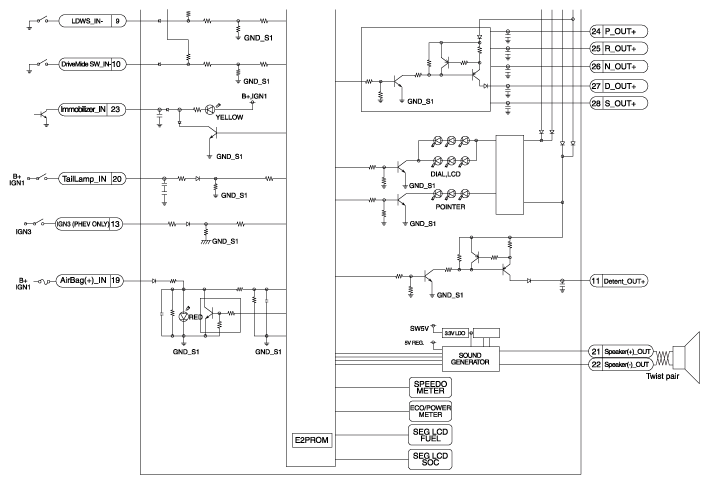

Home >> Hyundai >> 2017 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators & Gauges (PHEV) >> Instrument Cluster >> Schematic Diagrams >> Circuit Diagram >> General Supervision
