CLU Variant Coding

After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.

1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
2. Select model and "BCM".
3. Select Variant coding mode to perform.

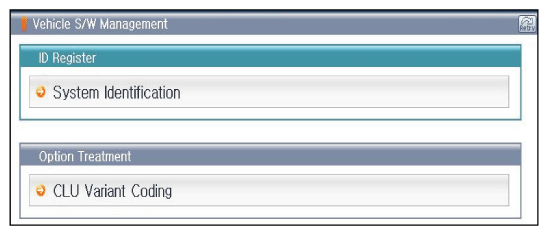

   Fig 1: Screen Display - CLU Variant Coding (1 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 2: Screen Display - CLU Variant Coding (2 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 3: Screen Display - CLU Variant Coding (3 Of 3)

   Courtesy of HYUNDAI MOTOR AMERICA
4. If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.
   Fig 4: Screen Display - CLU Variant Coding

   Courtesy of HYUNDAI MOTOR AMERICA
