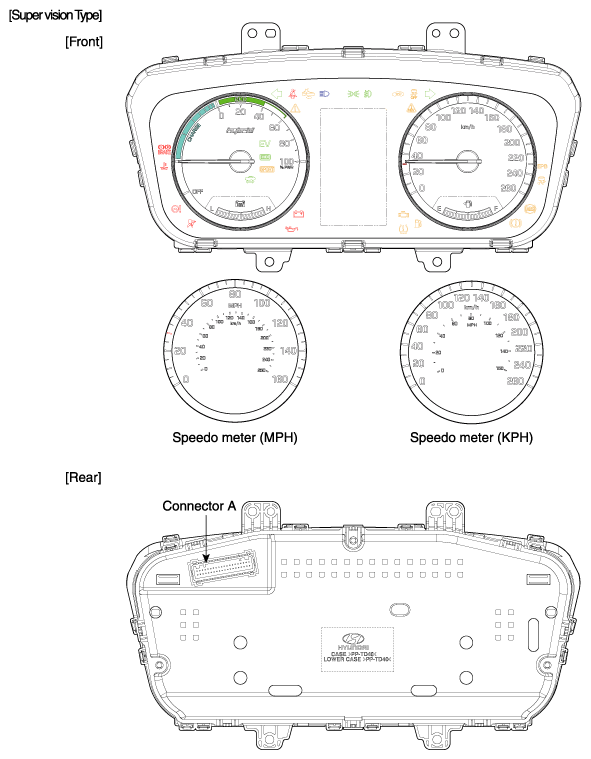

Components and Components Location: Components

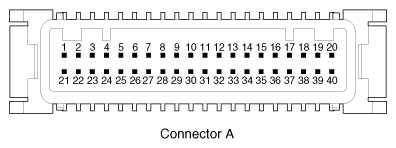

Connector Pin Information
| No. | Description | No. | Description |
|---|---|---|---|
| 1 | - | 21 | Speaker (+) |
| 2 | Illumination (-) | 22 | Speaker (+) |
| 3 | Rheostat switch (Down)_Input | 23 | Immobilizer_Input |
| 4 | Rheostat switch (Up)_Input | 24 | AT ("P" Position) |
| 5 | - | 25 | AT ("R" Position) |
| 6 | Oil press switch_Input | 26 | AT ("N" Position) |
| 7 | Washer level (Low signal)_Input | 27 | AT ("D" Position) |
| 8 | - | 28 | AT ("S" Position) |
| 9 | LDWS_Input | 29 | Multimedia-CAN (Low) |
| 10 | Driver mode switch_Input | 30 | Multimedia-CAN (High) |
| 11 | Detent | 31 | - |
| 12 | - | 32 | Chassis-CAN (High) |
| 13 | - | 33 | Chassis-CAN (Low) |
| 14 | Fuel sender (+)_Input | 34 | Trip switch 1 (+)_Input |
| 15 | - | 35 | Trip switch 2 (+)_Input |
| 16 | Fuel sender (-)_Input | 36 | Trip switch (-)_Input |
| 17 | Vehicle speed | 37 | GND |
| 18 | - | 38 | - |
| 19 | AIR BAG (+)_Input | 39 | IGN 1 |
| 20 | Tail lamp_Input | 40 | Battery (+) |
