Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

Fig 1: Locating Stoppers From Glove Box By Turning Stoppers
Courtesy of HYUNDAI MOTOR AMERICA

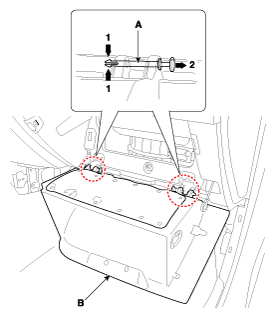

Separate the air damper (A) from the glove box (B).

Fig 2: Separating Air Damper From Glove Box
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the pushpins (A) and then remove the glove box (B).

Fig 3: Locating Glove Box
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the front door scuff trim [RH] (A).

Fig 4: Removing Front Door Scuff Trim (RH) Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the cowl side trim [RH] (A).

Fig 5: Removing Cowl Side Trim (RH) Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

Fig 6: Locating Crash Pad Under Cover (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the under lamp connector (A).

Fig 7: Disconnecting Under Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Fig 8: Removing Crash Pad Side Cover (RH)
Courtesy of HYUNDAI MOTOR AMERICA
After loosen the mounting screws, remove the crash pad passenger side garnish (A).

Fig 9: Locating Crash Pad Passenger Side Garnish
Courtesy of HYUNDAI MOTOR AMERICA
After loosen the mounting screws, remove the crash pad side garnish assembly [RH] (A).

Fig 10: Locating Crash Pad Side Garnish Assembly (RH)
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the glove box upper cover assembly (A) by using a screw driver.

Fig 11: Removing Glove Box Upper Cover Assembly Using Screw Driver
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the glove box lamp connector (A).

Fig 12: Disconnecting Glove Box Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
