Components Location

WARNING: This page is about a different variant/trim than selected.

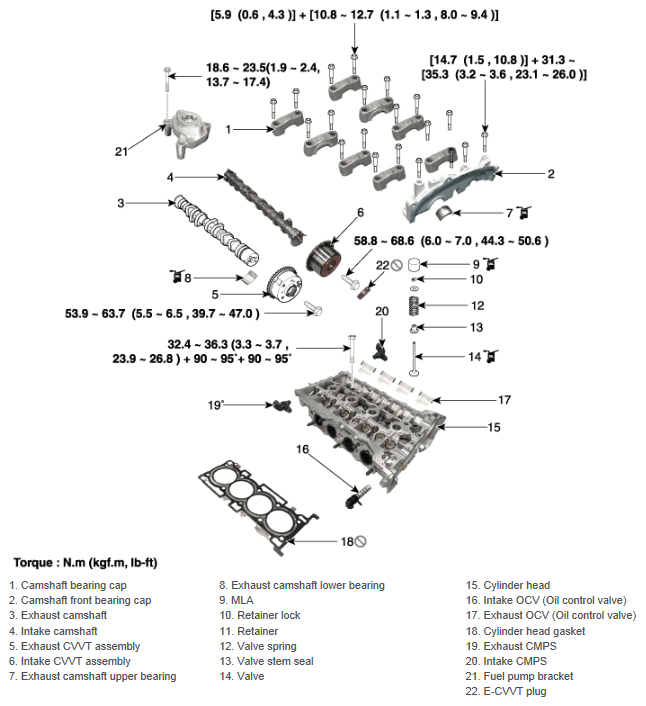

Fig 1: Exploded View Of Cylinder Head Assembly Components With Torque Specifications
G11993887Courtesy of HYUNDAI MOTOR AMERICA
