When crankshaft is able to rotate

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the engine cover. (Refer to Engine Cover )
  3. Remove the engine room under cover. (Refer to Engine Room Under Cover )
  4. Recover the A/C refrigerant. (Refer to REPAIR PROCEDURES )
  5. Loosen the drain plug, and drain the engine coolant. (Refer to COOLANT )

    Information

    While draining the coolant and recovering the A/C refrigerant, proceed below procedure at the same time.

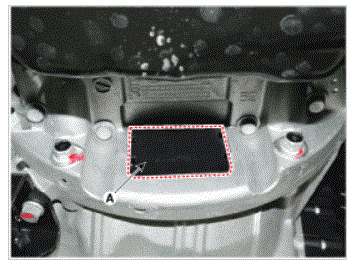

  6. Remove the dust cover (A).
    G00605348Courtesy of HYUNDAI MOTOR CO.

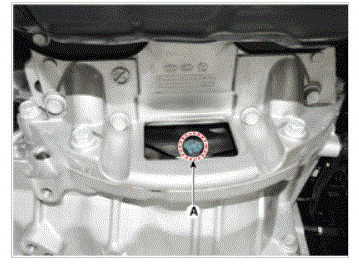

  7. Remove the torque converter mounting bolts (A) with rotating the crankshaft.

    Tightening torque:

    45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

    G00605349Courtesy of HYUNDAI MOTOR CO.

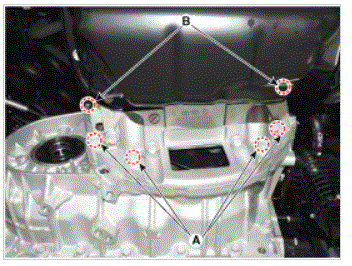

  8. Loosen the engine & transmission lower mounting bolts (A, B).

    Tightening torque:

    Bolt (A) : 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)

    Bolt (B) : 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

    G00605350Courtesy of HYUNDAI MOTOR CO.

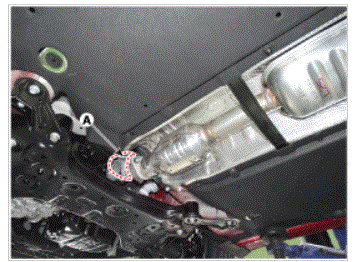

  9. Remove the front muffler (A) after loosening the front muffler mounting nuts.

    Tightening torque:

    39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

    G00605351Courtesy of HYUNDAI MOTOR CO.

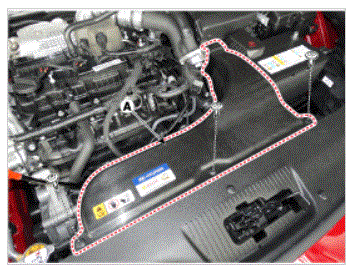

  10. Remove the air duct (A).
    G00605352Courtesy of HYUNDAI MOTOR CO.

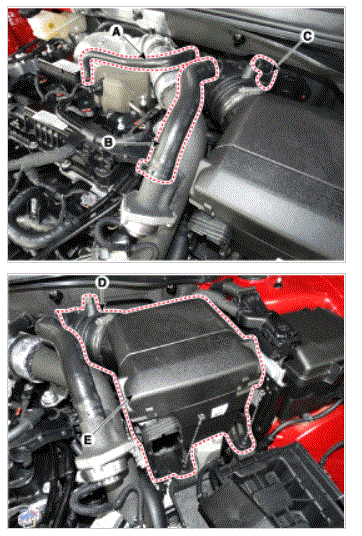

  11. Remove the air cleaner assembly.
    1. Disconnect the breather hose (A), the recirculation hose (B) and the brake booster vacuum hose (C).
    2. Disconnect the air intake hose (D) and then remove the air cleaner assembly (E).
    G00605353Courtesy of HYUNDAI MOTOR CO.
  12. Remove the battery and battery tray. (Refer to BATTERY )
  13. Remove the front bumper. (Refer to FRONT BUMPER COVER )
  14. Remove the head lamp. (Refer to HEAD LAMPS )

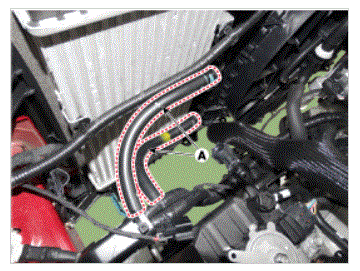

  15. Separate the ATF cooler hose (A).
    G00605354Courtesy of HYUNDAI MOTOR CO.

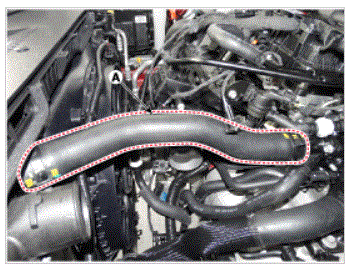

  16. Disconnect the radiator upper hose (A).
    G00605355Courtesy of HYUNDAI MOTOR CO.

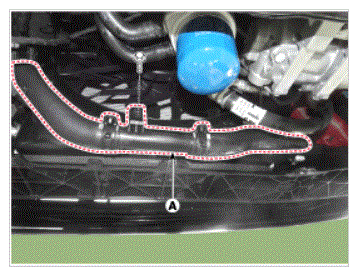

  17. Disconnect the radiator lower hose (A).
    G00605356Courtesy of HYUNDAI MOTOR CO.

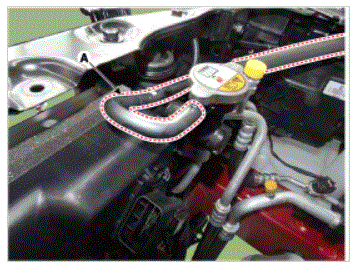

  18. Disconnect the radiator over flow hose (A).
    G00605357Courtesy of HYUNDAI MOTOR CO.

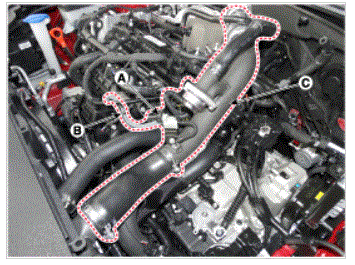

  19. Disconnect the recirculation valve connector (A) and the vacuum hose (B), and then remove the intercooler inlet pipe & hose assembly (C).

    Tightening torque:

    Hose clamp bolt : 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

    Pipe mounting bolt : 14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

    G00605358Courtesy of HYUNDAI MOTOR CO.

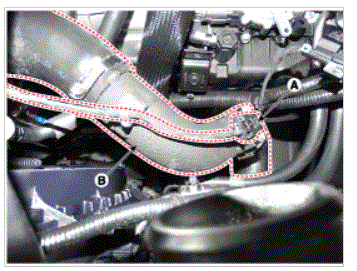

  20. Disconnect the boost pressure sensor connector (A) and then remove the intercooler outlet pipe & hose assembly (B).

    Tightening torque:

    4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

    G00605359Courtesy of HYUNDAI MOTOR CO.

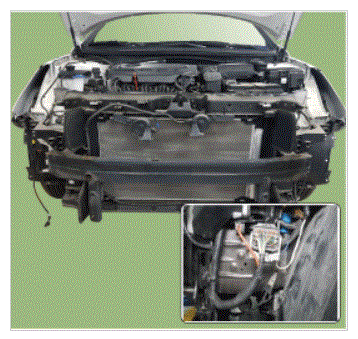

  21. Loosen the ground bolt and disconnect the connectors around the FEM.
    NOTE: Mark all wiring and hoses to avoid misconnection.
    G00605360Courtesy of HYUNDAI MOTOR CO.
  22. Disconnect the hood latch cable.

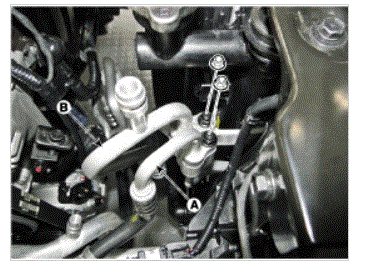

  23. Separate the discharge line (A) and liquid line (B) from the condenser.
    G00605361Courtesy of HYUNDAI MOTOR CO.

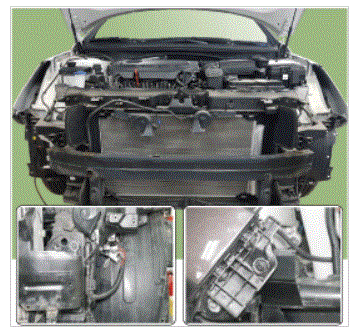

  24. Remove the FEM after loosening the fender fixed bolts and FEM carrier mounting bolts.
    NOTE: Marking is necessary before removing FEM in order to install the FEM in the right place as it was.
    G00605362Courtesy of HYUNDAI MOTOR CO.

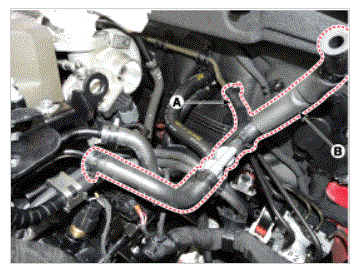

  25. Disconnect the intensifier hose (A) and the vacuum hose (B).
    G00605363Courtesy of HYUNDAI MOTOR CO.

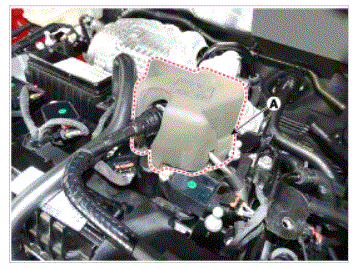

  26. Remove the high pressure fuel pump foam (A).
    G00605364Courtesy of HYUNDAI MOTOR CO.

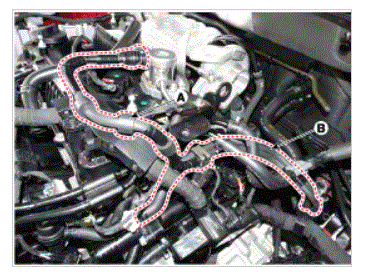

  27. Disconnect the fuel hose (A) and PCSV (Purge control solenoid valve) hose (B).
    G00605365Courtesy of HYUNDAI MOTOR CO.

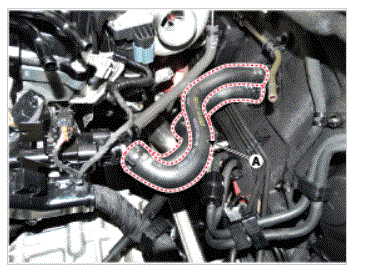

  28. Disconnect the heater hoses (A).
    G00605366Courtesy of HYUNDAI MOTOR CO.

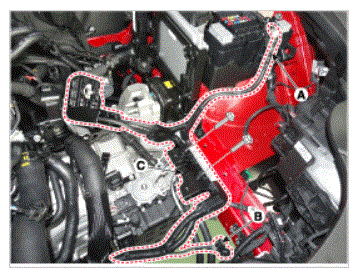

  29. Disconnect the (+) cable (A) from the fuse/relay box and the front connector (B) and then remove the wiring protector (C).
    G00605367Courtesy of HYUNDAI MOTOR CO.

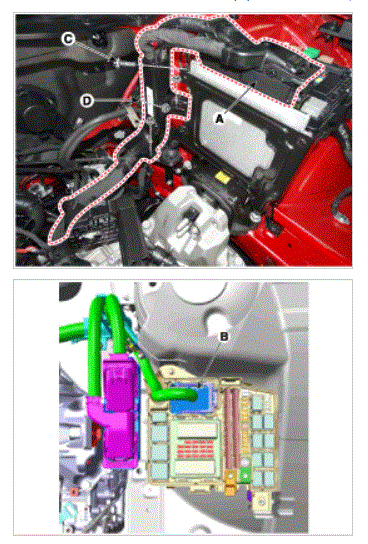

  30. Disconnect the ECM connectors (A) from the ECM, the fuse box connector (B) from the fuse/relay box and the engine ground line (C) and then remove the wiring protector (D).
    G00605368Courtesy of HYUNDAI MOTOR CO.
  31. Remove the drive belt and water pump belt. (Refer to DRIVE BELT )
  32. Remove the water pump pulley. (Refer to the WATER PUMP )
  33. Remove the drive belt tensioner. (Refer to DRIVE BELT TENSIONER )
  34. Remove the crankshaft damper pulley. (Refer to CRANKSHAFT DAMPER PULLEY )
    NOTE: Use the SST (Ring gear stopper) to remove the damper pulley bolt.
  35. Remove the compressor. (Refer to COMPRESSOR )

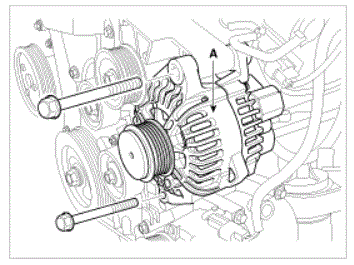

  36. Remove the alternator (A).

    Tightening torque:

    49.0 - 63.7N.m (5.0 - 6.5kgf.m, 36.2 - 47.0lb-ft)

    G00605369Courtesy of HYUNDAI MOTOR CO.

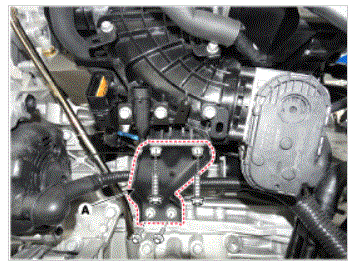

  37. Remove the intake manifold stay (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

    G00605370Courtesy of HYUNDAI MOTOR CO.

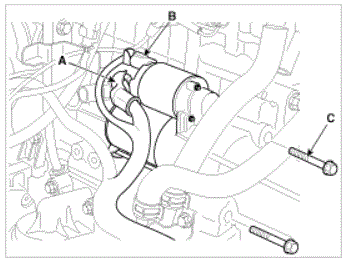

  38. Remove the starter.
    1. Disconnect the starter cable (A) from the B terminal on the solenoid, and then disconnect the connector (B).
    2. Loosen the starter motor mounting bolts (C), and then remove the starter.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G00605371Courtesy of HYUNDAI MOTOR CO.

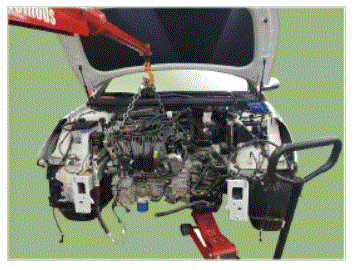

  39. Support the transmission using the jack and install the lift jack of engine hanger.

    Tightening torque:

    10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

    G00605372Courtesy of HYUNDAI MOTOR CO.

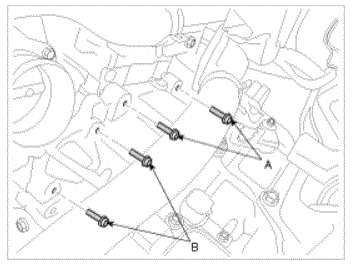

  40. Loosen the engine & transmission upper mounting bolts (A, B).

    Tightening torque:

    Bolt (A) : 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

    Bolt (B) : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G00605384Courtesy of HYUNDAI MOTOR CO.

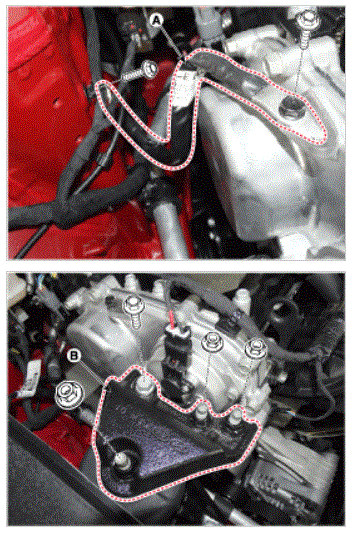

  41. Disconnect the ground cable (A), and then remove the engine mounting support bracket (B).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

    G00605373Courtesy of HYUNDAI MOTOR CO.

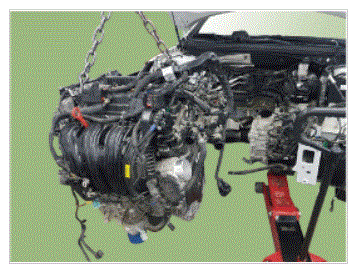

  42. Remove the engine from the transmission.
    G00605374Courtesy of HYUNDAI MOTOR CO.
    NOTE: Using the pry bar, separate the engine and transmission
