Section 47 (Automatic Transaxle Control System - 2.0L (Except HEV))
>>
Underdrive Brake Control Solenoid Valve (UD/B_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

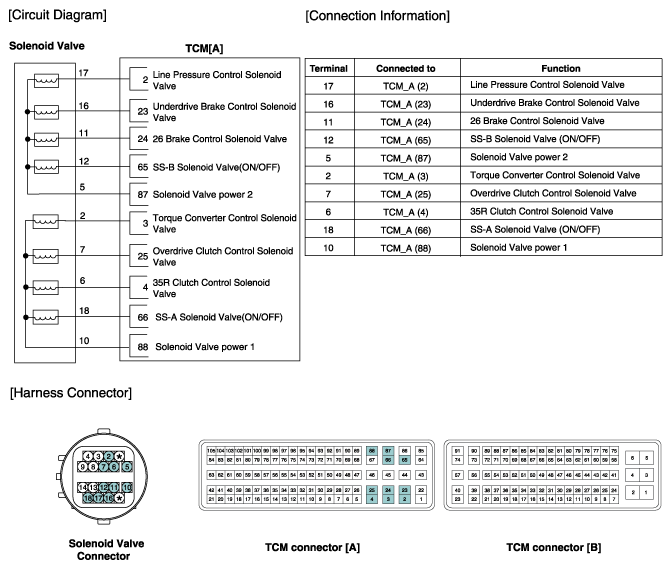

Fig 1: Underdrive Brake Control Solenoid Valve (UD/B-VFS) Circuit
Courtesy of HYUNDAI MOTOR AMERICA
