Section 47 (Automatic Transaxle Control System - 2.0L (Except HEV))
>>
Shift Lever
>>
Schematic Diagrams
Schematic Diagrams
WARNING:
This page is about a different variant/trim than selected.

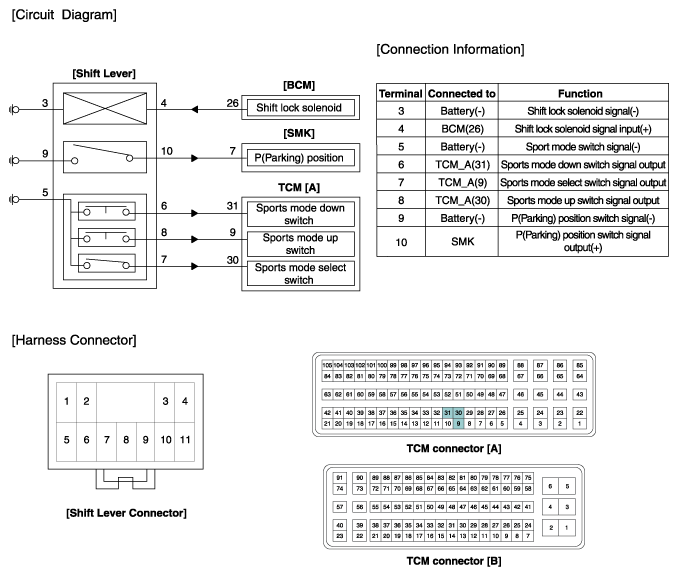

Fig 1: Shift Lever Circuit
Courtesy of HYUNDAI MOTOR AMERICA
