Signal Waveform

WARNING: This page is about a different variant/trim than selected.

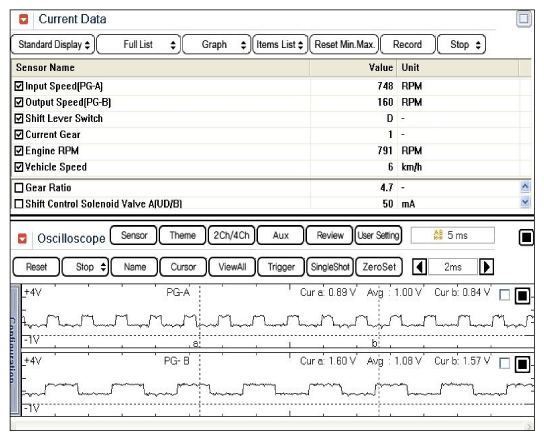

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
G11994764Courtesy of HYUNDAI MOTOR AMERICA

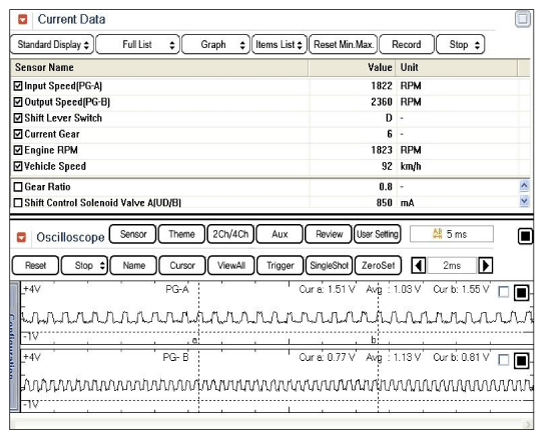

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
G11994765Courtesy of HYUNDAI MOTOR AMERICA
