DUAL CLUTCH TRANSMISSION SPECIAL SERVICE TOOLS
| Tool (Number and Name) | Illustration | Use |
|---|---|---|

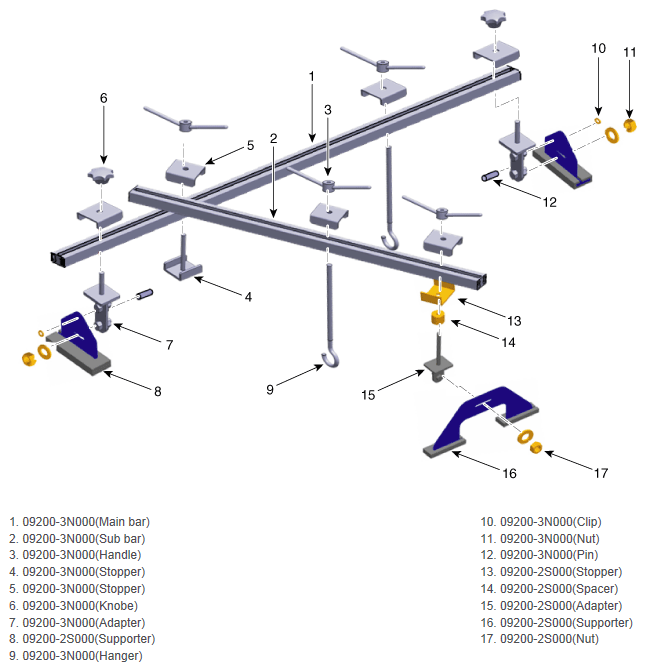

| 09200-3N000 Engine support fixture (Beam) | Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S000). Permit operating with 09200-38001. Refer to the engine support fixture assembly drawing below. |
|
| 09200-2S000 Engine support fixture (Supporter) | Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000). Refer to the engine support fixture assembly drawing below. |
|
| 09430-C1190 Oil seal installer | Installation of the differential oil seal in the transaxle case and housing side. [Using with bar (SST No. 09231-H1100)] | |
| 09231-H1100 Bar | Installation of the differential oil seal in the transaxle case and housing side. Using with oil seal installer (SST No.: 09430-C1190)] | |
| 09480-A3800 Inhibitor switch neutral fixed pin | When installing the manual control lever on the inhibitor switch, used to align the neutral position. | |
| 09430-C1180 Dual clutch remover | Used for removing dual clutch assembly | |
| 09430-2A240 Dual clutch Installer | Used for installing dual clutch assembly | |
| 09430-C1300 Clutch abrasion compensation tool | Used for adjusting clutch actuator Used with the Clutch actuator adjustment jig (09430-C1302) | |
| 09430-C1302 Actuator fixing jig & Motor shaft reset tool | Used for adjusting clutch actuator Used with the Clutch actuator adjuster (09430-C1300) | |
| 09430-A5100 Clutch engagement fork fixing jig | Used for removing clutch actuator assembly |
