CCV & Canister Line Diagram & Test Condition (Separated Structure of FTPS & Canister)

WARNING: This page is about a different variant/trim than selected.

Connect Vacuum pump & gauge to one of the disconnected vapor line hoses that goes to Canister.
After disconnecting hose that attaches to the Canister and Fuel tank, block the hole up with appropriate plug
NOTE: Remove the fuel tank if plugging hose is impossible on the vehicle
Close the CCV with Actuation test function on GDS.
NOTE: In case that fuel tank is removed, energize B+ and Ground for CCV closing
Check leakage between CCV and Canister line with vacuum pump & gauge operation
Specification: No Leakage

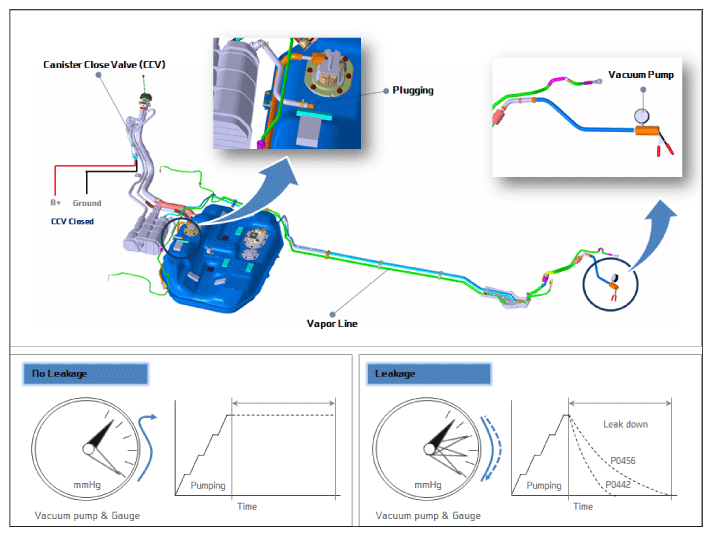

Fig 1: Checking Leakage Between CCV And Canister Line With Vacuum Pump & Gauge
Courtesy of HYUNDAI MOTOR AMERICA
Does a leak exist?
YES
- Go to Determine whether the cause of leakage is Canister or CCV procedure below.
NO
- If no needle movement for more than 1 min, perform the test 3~4 times again after CCV ON/OFF more than 3 times.
- If maintaining vacuum, Go to 'Fuel tank' troubleshooting procedure below.
