Section 42 (Engine Control System Diagnosis - 2.0L (2 Of 3) (Except HEV))
>>
DTC P0442: Evaporative Emission System-Leak Detected (Small Leak)
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

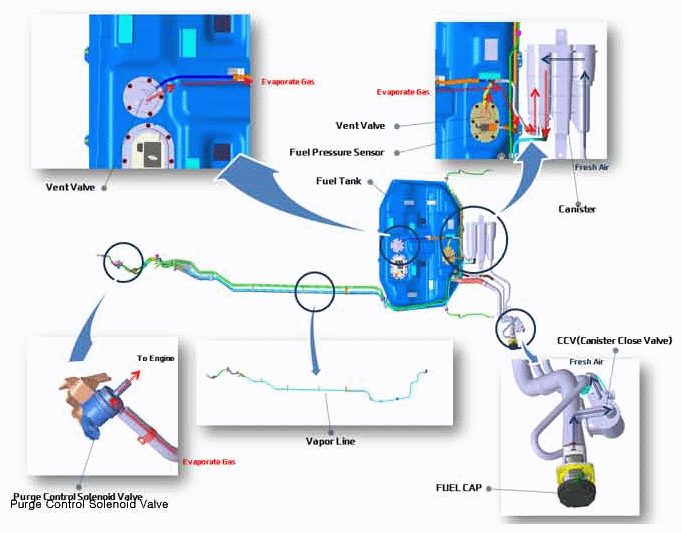

Fig 1: Evaporative Emission System Diagram
Courtesy of HYUNDAI MOTOR AMERICA
