Component Inspection

■ Injector Operation Inspection

1. Start engine.
2. Check that RPM decrease when performing the injector's "Actuation Test".
   NOTE: The purpose of this test is to determine if there is a fault in fuel injection. Start this test in stable idle to get an accurate result.

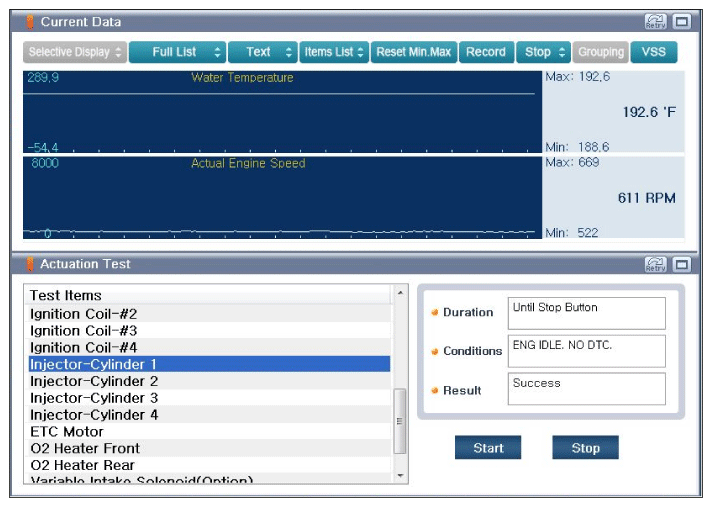

   Fig 1: Scantool Display - Current Data And Actuation Test (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

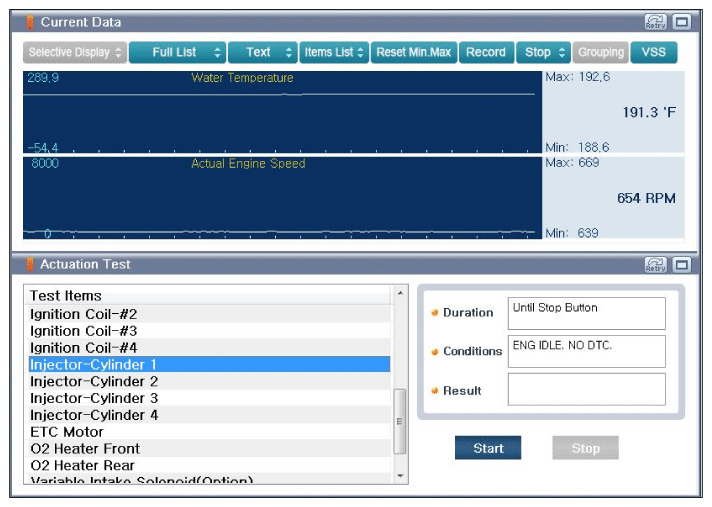

   Fig 2: Scantool Display - Current Data And Actuation Test (2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is there any cylinder with no change in RPM or only a small change in RPM?

   YES

   • Check injector for contamination, deterioration, or damage. Substitute with a known-good injector and check for proper operation. If the problem is corrected, replace injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
