Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.
  1. Clear the "Diagnostic Trouble Codes (DTC)" with GDS.
  2. Operate the vehicle within the following conditions:
    • Engine run time at idle over 10 minutes
    • Engine Oil Temp. is between 20°C (68°F) and 110°C (230°F)
  3. IG "ON".
  4. Using a GDS, monitor DTC
  5. Go to applicable troubleshooting procedure for the following conditions
    • If any DTCs related to OCV are stored, do ALL REPAIRS associated with those codes before proceeding with this troubleshooting procedure.
    • If DTC P0365 is set again, go to next step below.
    • If other DTCs are stored, go to the applicable troubleshooting procedure.
    • If no DTC output, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  6. Select "Diagnostic Trouble Codes (DTC)" button, Press "DTC Status" to check DTC's information from the DTCs menu.
  7. Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
  8. Read "DTC Status" parameter.

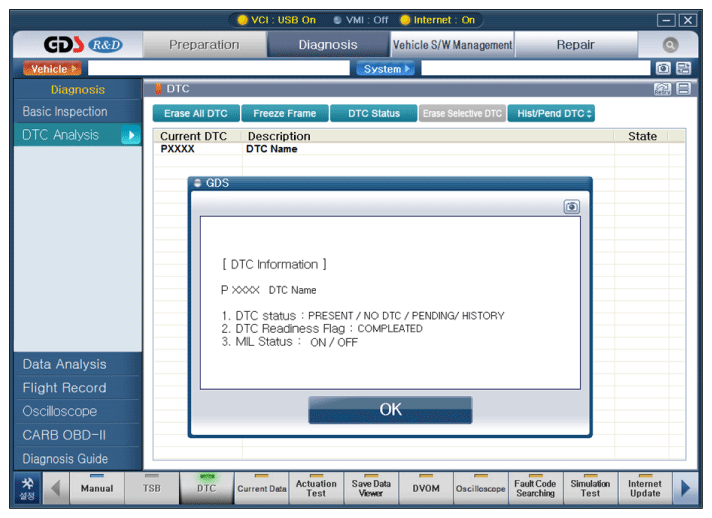

    Fig 1: Scantool Display - DTC Status
    G11991762Courtesy of HYUNDAI MOTOR AMERICA
  9. Record all DTC's, DTC status and freeze frame data. Does DTC Status indicate "Present"?
    NOTE:
    • History (Not Present) fault: DTC occurred but has been cleared.
    • Present fault: DTC is occurring at present time.

    YES

    • Go to next step below.

    NO

    • Fault is intermittent caused by PCM memory not having been cleared.
