Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

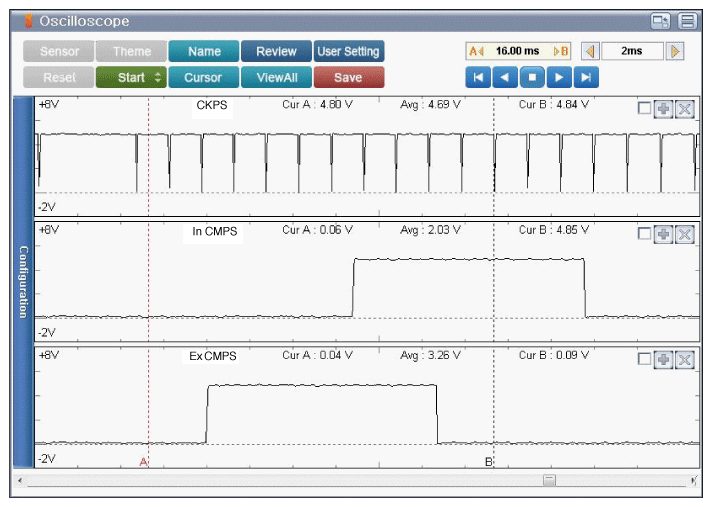

Fig 1: Scantool Display - Typical Crankshaft Position Sensor And Camshaft Position Sensor Waveform

Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.

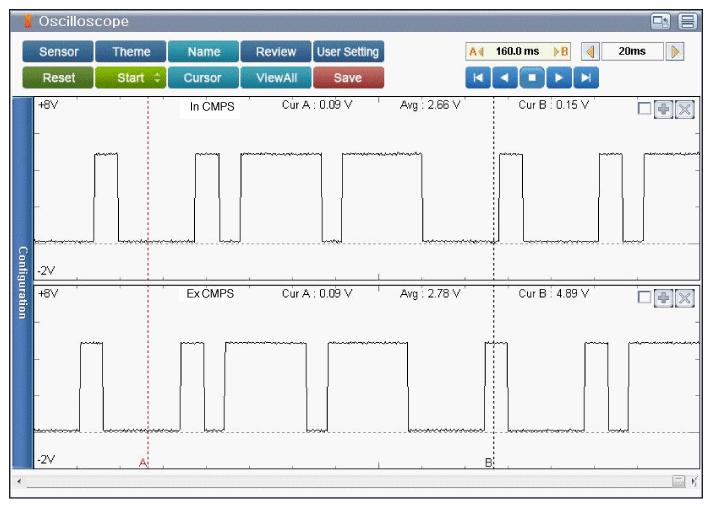

Fig 2: Scantool Display - Normal Waveform Of IN-CMPS And EX-CMPS At Idle

Courtesy of HYUNDAI MOTOR AMERICA

Normal waveform of IN-CMPS & Ex-CMPS at idle.
