Component Inspection

■ Turbo Charger Boost Sensor (PUT) Inspection

1. Connect GDS and select "Current Data" mode
2. Start the engine.
3. Monitor the parameters related to turbo charger on the "Current Data" menu of the GDS below.

   Specification:  the change of turbo charger boost pressure should parallel actual engine speed.

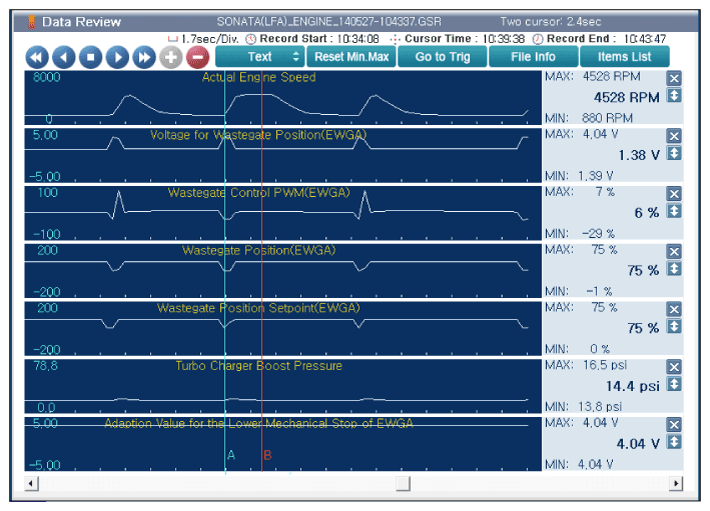

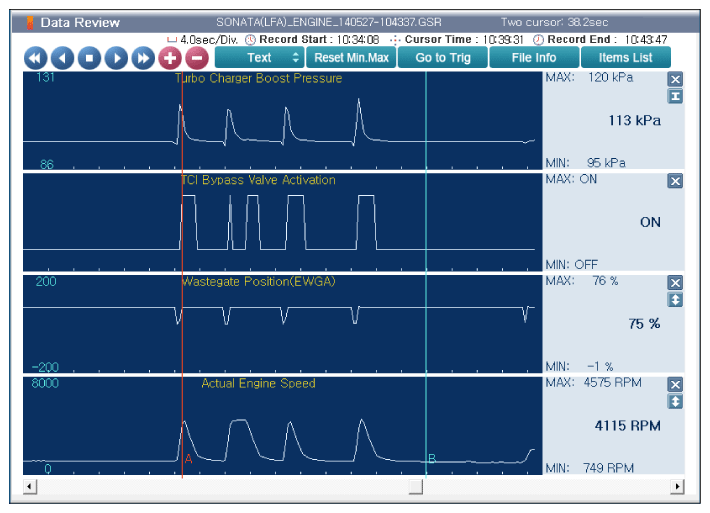

   Fig 1: Scantool Display - Turbo Charger Boost Pressure Parallel Actual Engine Speed

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is parameter displayed normal?

   YES

   • Go to next step.

   NO

   • Substitute with a known - good Boost Pressure Sensor (PUT) and check for proper operation. If the problem is corrected, replace Boost Pressure Sensor (PUT) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ EWGA Inspection

1. Monitor "Current Data" during actuating EWGA "Actuation Test".
2. Visually check the position of the EWGA during activation referring to below figures.

   Specification:

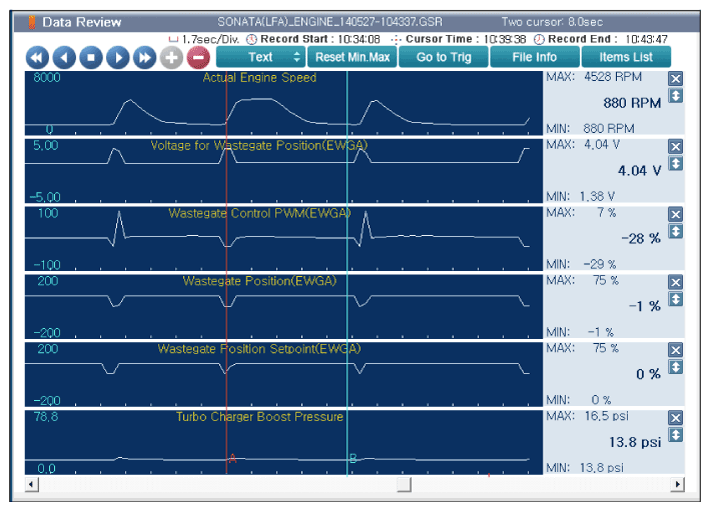

   Fig 2: Scantool Display - Service Data When EWGA Closed

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 3: Scantool Display - Service Data When EWGA Open

   Courtesy of HYUNDAI MOTOR AMERICA

   Position	Output Voltage [V]	Operating Angle [°]	Lift [mm]
   Mechanical Close end stop Position (MCP)	4.8	0	0
   Electrical Close end stop Position (ECP)	3.8	25.6	2.2
   Electrical Open end stop Position (EOP)	1.0	97.2	16.55
   Mechanical Open end stop Position (MOP)	0.5	110	19.2

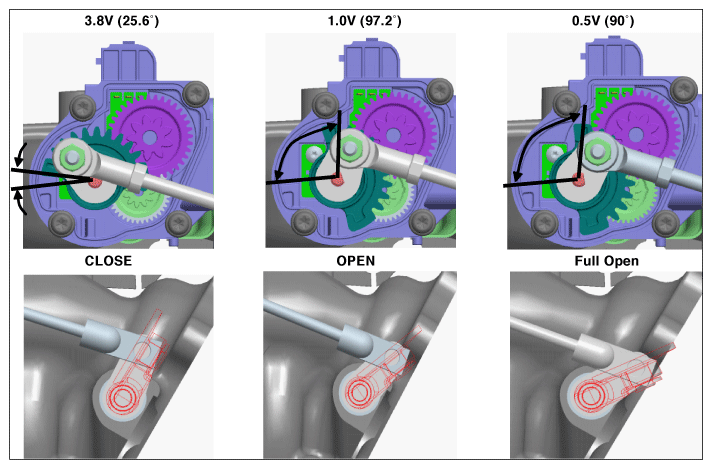

   Fig 4: Checking EWGA Opening And Closing Position

   Courtesy of HYUNDAI MOTOR AMERICA

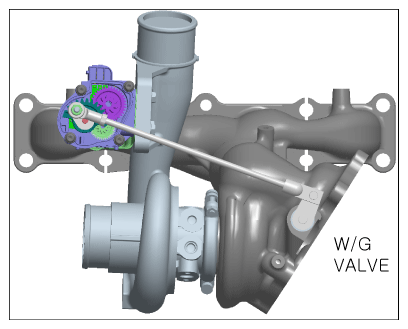

   Fig 5: Waste Gate Valve

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is parameter displayed within specifications?

   YES

   • heck for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good EWGA and check for proper operation. If the problem is corrected, replace EWGA and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
