Component Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check Ignition Coil

  1. IG KEY "OFF".
  2. Select "vehicle scopemeter" in the menu, and connect channel A of GDS with control terminal of Ignition Coil harness connector.
  3. Engine start. And check the control waveforms.

    Specification:

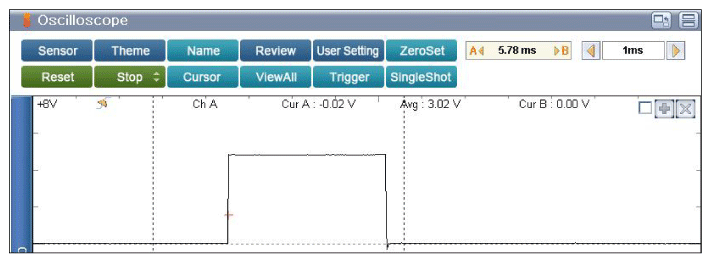

    Fig 1: Scantool Display - Waveforms Of Ignition Coil
    G11991224Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the measured control waveforms of Ignition Coil normal?

    YES

    • Substitute with a known - good Ignition Coil and check for proper operation. If the problem is corrected, replace Ignition Coil and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
