Signal Waveform & Data
WARNING: This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA

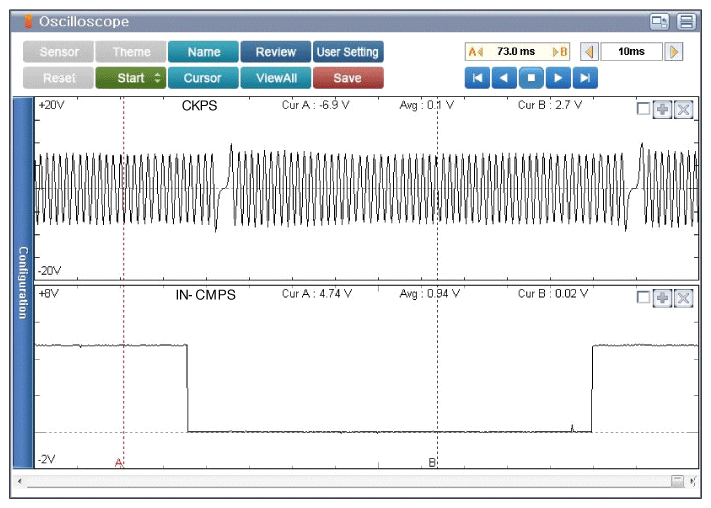

This example shows a typical Crankshaft Position Sensor (CKPS) waveform at idle. The ECM controls the injection and ignition timing by using these signals.
