Section 39 (Engine Control System Diagnosis - 1.6L (2 Of 3) (Except HEV))
>>
DTC P0301: Cylinder 1-Misfire Detected
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

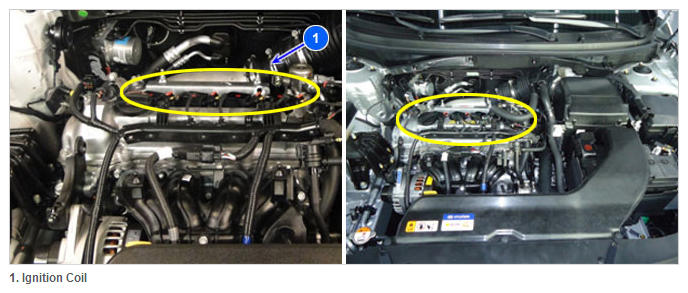

Fig 1: Ignition Coil Component
Courtesy of HYUNDAI MOTOR AMERICA
