Section 39 (Engine Control System Diagnosis - 1.6L (2 Of 3) (Except HEV))
>>
DTC P0299: Turbocharger/Supercharger Underboost
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

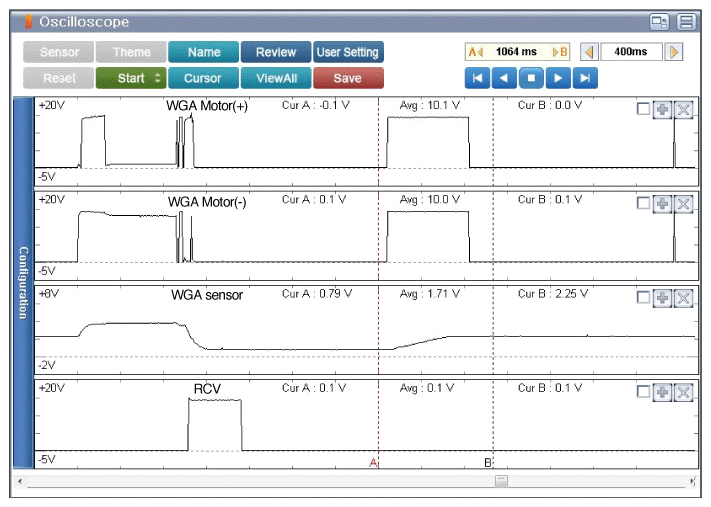

Fig 1: Scantool Display - Waveform Of WGA Motor (+), (-), Sensor And EWGA Before Or After Acceleration
Courtesy of HYUNDAI MOTOR AMERICA

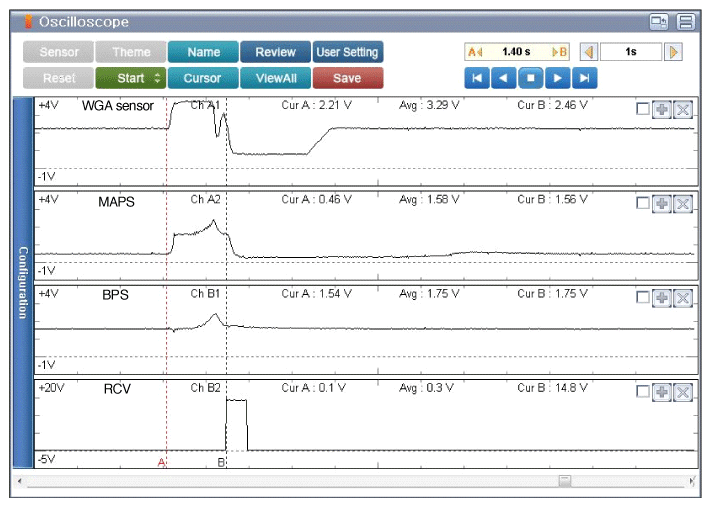

Fig 2: Scantool Display - Waveform Of RCV And Boost Pressure Sensor Before & After Acceleration
Courtesy of HYUNDAI MOTOR AMERICA
