Section 39 (Engine Control System Diagnosis - 1.6L (2 Of 3) (Except HEV))
>>
DTC P0204: Injector Circuit/Open-Cylinder 4
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

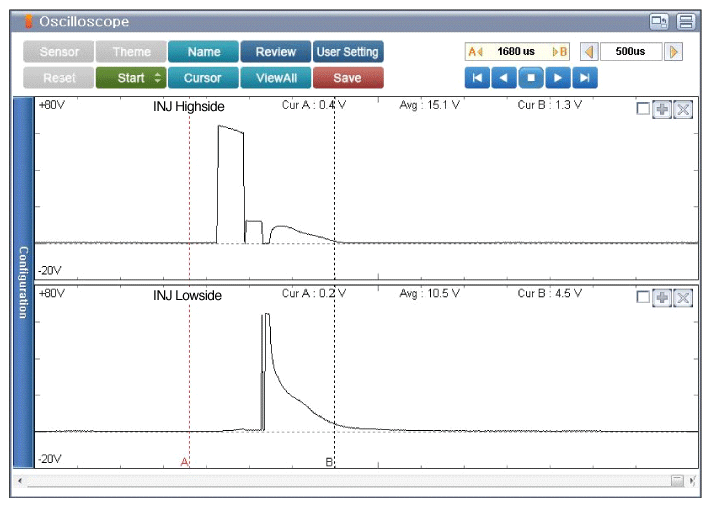

Fig 1: Scantool Display - Normal Waveform Of ING At Idle
Courtesy of HYUNDAI MOTOR AMERICA
