Signal Waveform & Data
WARNING: This page is about a different variant/trim than selected.

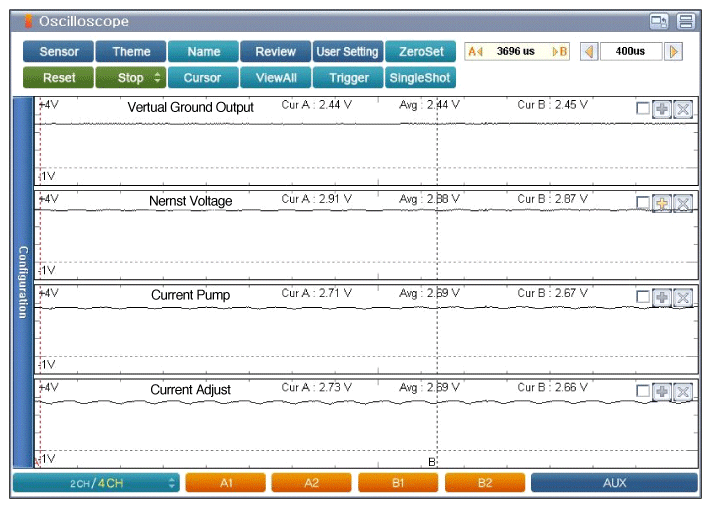

Fig 1: Screen Display - Signal Waveform Of Sensor Virtual Ground Output At IG Key ON And Engine Running
Waveform of sensor Current Pump at IG KEY "ON" and Engine running. It fluctuates between 2 V and 3 V periodically.
Waveform of sensor Virtual Ground Output at IG KEY "ON" and Engine running. 2.5 V is displayed.
Waveform of sensor Current Adjust at IG KEY "ON" and Engine running. It fluctuates between 2 V and 3 V periodically. Waveform of sensor Nernst Voltage at IG KEY "ON" and Engine running. 2.9 V is displayed.
