Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

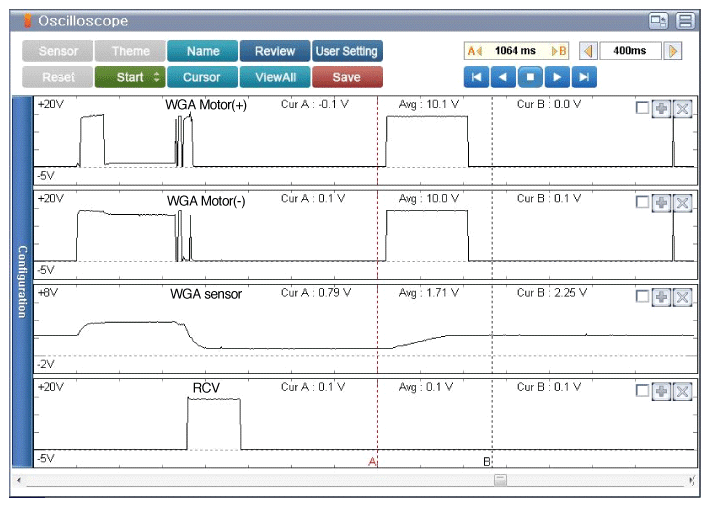

Fig 1: Screen Display - Waveform Of WGA Motor (+), (-) Sensor And EWGA Before & After Acceleration
G11993726Courtesy of HYUNDAI MOTOR AMERICA
