Section 38 (Engine Control System Diagnosis - 1.6L (3 Of 3) (Except HEV))
>>
DTC P2290: Injector Control Pressure Too Low
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

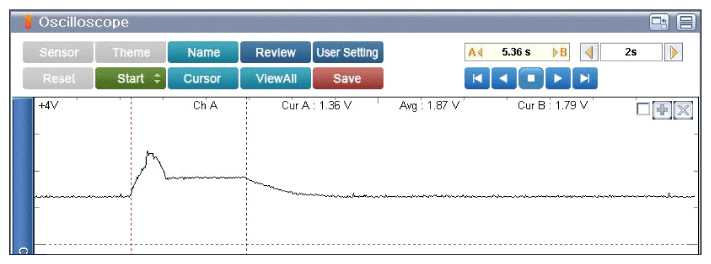

Fig 1: Screen Display - Normal Waveform Of FPS At Acceleration
Courtesy of HYUNDAI MOTOR AMERICA
