Monitor GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor "APS" parameter on the "Current Data" with GDS.

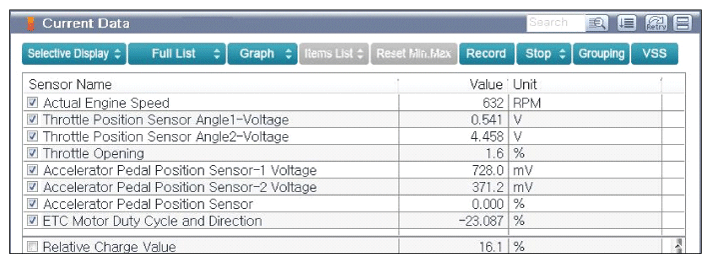

    Fig 1: Screen Display - APS Parameter On Current Data With GDS (1 Of 2)
    G11993671Courtesy of HYUNDAI MOTOR AMERICA

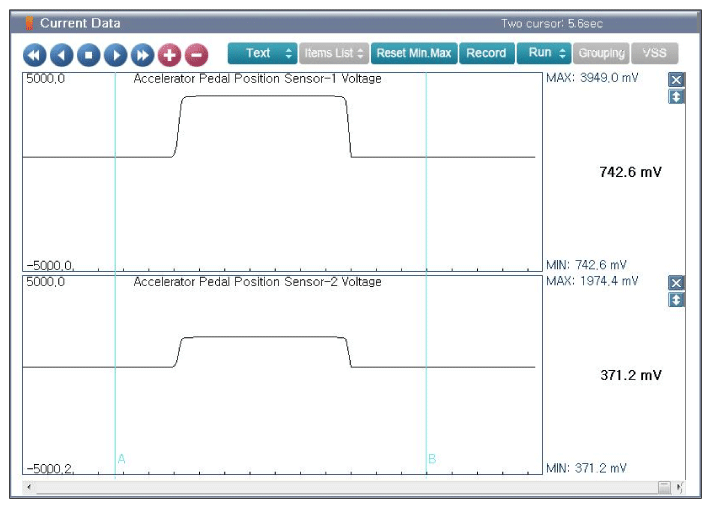

    Fig 2: Screen Display - APS Parameter On Current Data With GDS (2 Of 2)
    G11993672Courtesy of HYUNDAI MOTOR AMERICA
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
