Signal Waveform & Data
WARNING: This page is about a different variant/trim than selected.

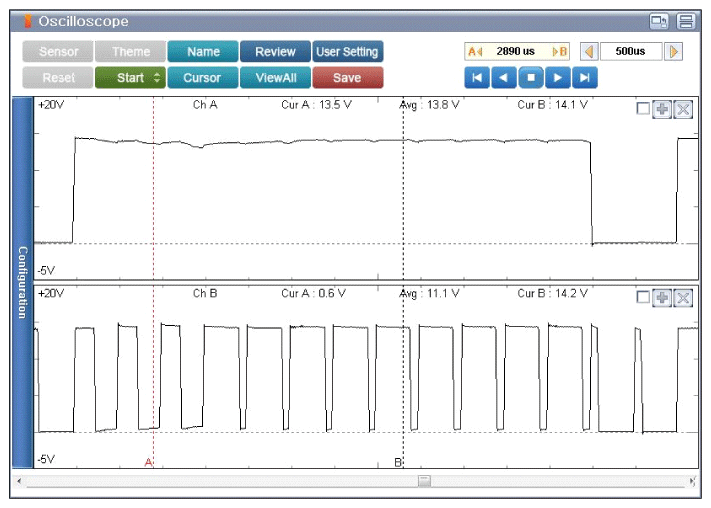

This is a ETC motor signal waveform with acceleration.
ECM controls ETC motor (DC motor) to operate the throttle valve.
ETC motor operate and change the throttle valve position in order to open the closed throttle valve under the acceleration condition.
