Monitor GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor "Low Pressure Fuel Pressure" parameter on the "Current Data" with GDS.

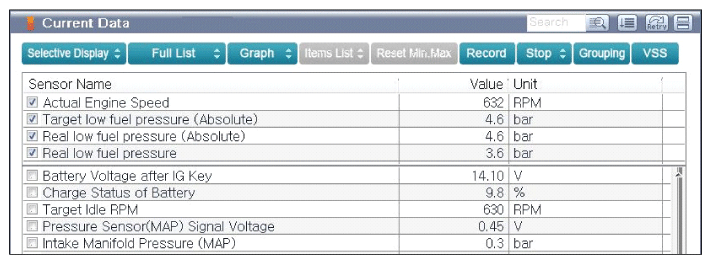

    Fig 1: Screen Display - Low Pressure Fuel Pressure Parameter On Current Data With GDS
    G11993653Courtesy of HYUNDAI MOTOR AMERICA
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
