Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

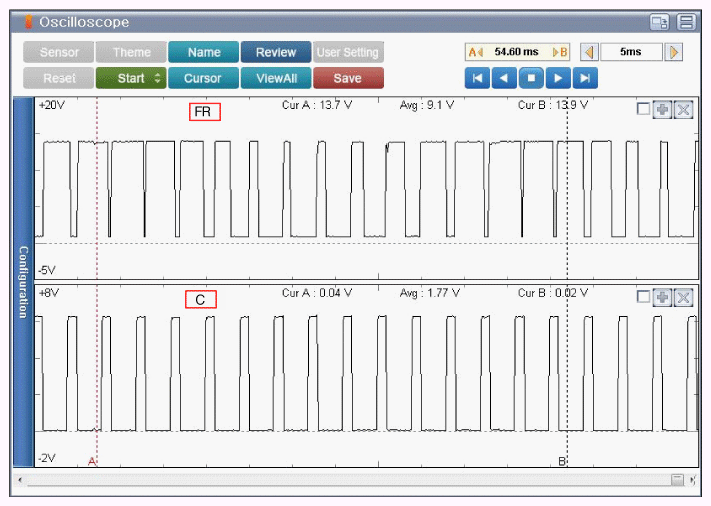

Fig 1: Screen Display - Idle Status Signal Waveform

Courtesy of HYUNDAI MOTOR AMERICA

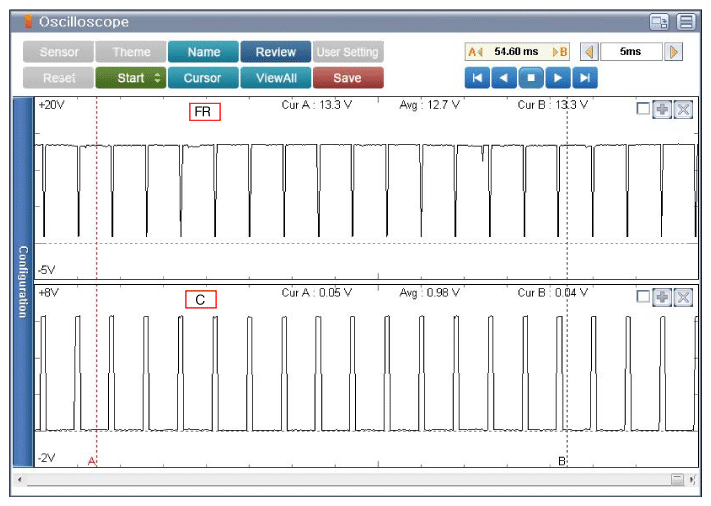

Fig 2: Screen Display - Electrical Load (Head Lamp And Defrost ON) Signal Waveform

Courtesy of HYUNDAI MOTOR AMERICA

Duty (+) from FR terminal is increased if electrical loads are ON (Head Lamp and Defrost are ON) ECM controls generation of alternator with duty from FR terminal when electrical Loads turn on
