Section 37 (Dual Clutch Transmission Control System - 1.6L (Except HEV))
>>
Shift Lever
>>
Components And Components Location
>>
Components (2)
Components (2)
WARNING:
This page is about a different variant/trim than selected.

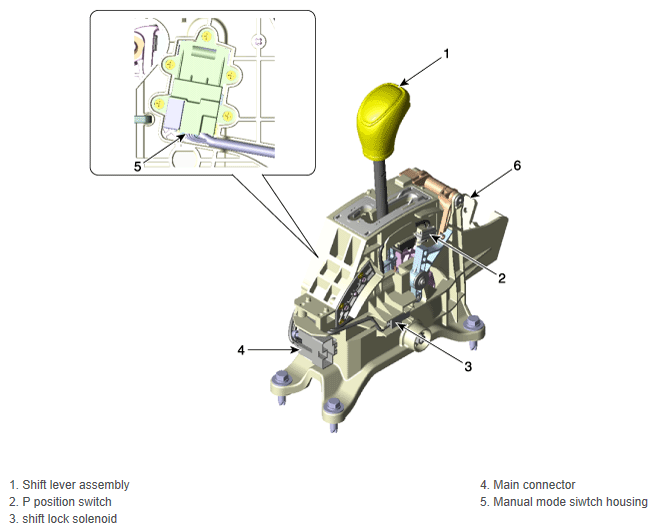

Fig 1: Shift Lever Components
Courtesy of HYUNDAI MOTOR AMERICA
