Section 37 (Dual Clutch Transmission Control System - 1.6L (Except HEV))
>>
Inhibitor Switch
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

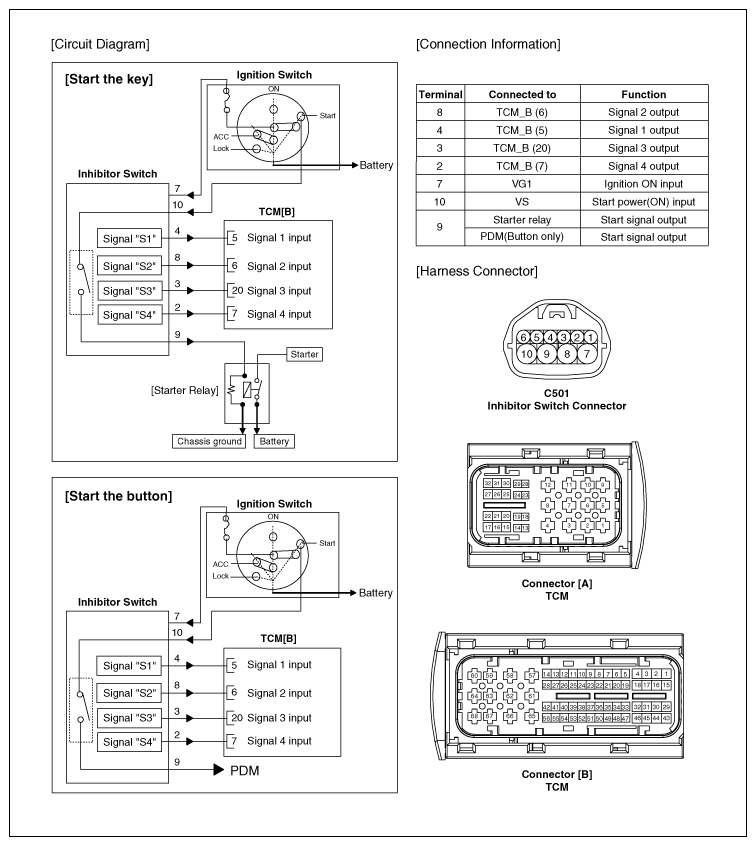

Fig 1: Inhibitor Switch Circuit
Courtesy of HYUNDAI MOTOR AMERICA
