Section 37 (Dual Clutch Transmission Control System - 1.6L (Except HEV))
>>
Inhibitor Switch
>>
Repair Procedures
>>
Inspection
>>
Inspection flow
Inspection flow
WARNING:
This page is about a different variant/trim than selected.

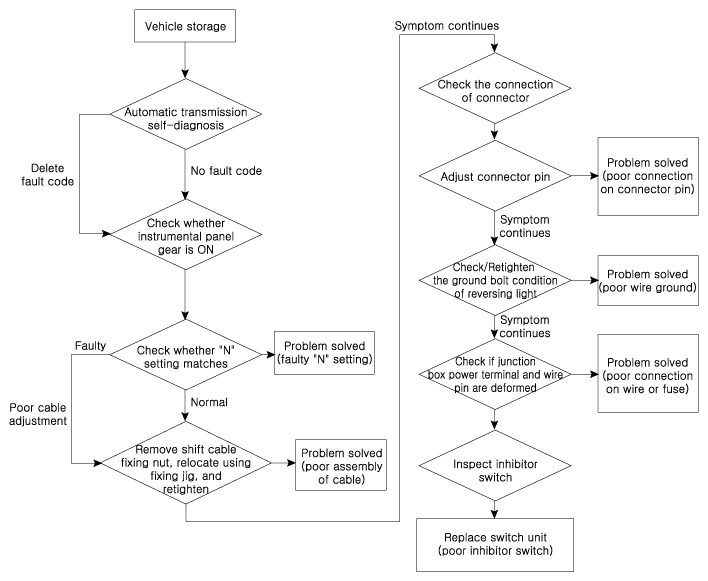

Fig 1: Inhibitor Switch Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
